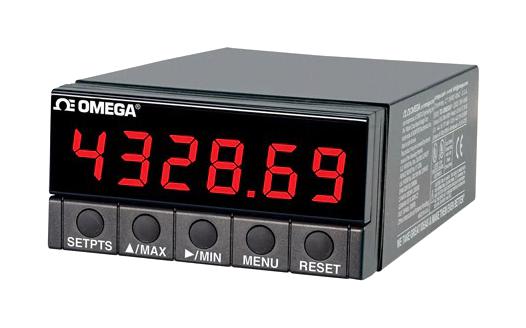

OMEGA DP41TCS2 Thermocouple Indicator
The DP41 Series high-performance process meters offer exceptional accuracy and versatile input capabilities, including thermocouple, RTD, voltage, and current. They feature a 6-digit display with optional split-display models, alarm/control functions, and on-board calibration. These meters support multiple communication options like RS232/RS485 and analog outputs, suitable for industrial measurement tasks. With a compact design, robust NEMA 4 enclosure, and easy front-panel programming, the DP41 Series is ideal for precise process monitoring in industrial automation, testing, and control environments, ensuring reliable, real-time data acquisition.
OMEGA DP41TCS2 Thermocouple Indicator Specifications:
- Display: 6-digit, 14-segment LED, 13.7 mm high
- Accuracy: +0.005% reading, 0.2°C for thermocouples and RTDs
- Input Types: Thermocouple, RTD, voltage, current
- Thermocouple Types: J, K, T, E, R, S, B, N, J DIN
- RTD Input: 2-, 3-, or 4-wire, 6 to 6000 Q, NIST or DIN platinum
- Voltage Input Ranges: 0-100 mV to 0-100 V, +50 mV, +500 mV, +5V, +50V
- Current Ranges: 0-20 mA, 4-20 mA
- Resolution: 15-bit, dual-slope conversion
- Sampling Rate: 3 or 13 readings/sec
- Power: 115/230 Vac or 10-32 Vdc, max 10 W
- Enclosure: NEMA 4 (IP65), panel cutout 45 x 92 mm
- Dimensions: 48 H x 96 W x 165 mm D
- Communication: Optional RS232, RS485, analog, BCD, relays
- Features: Peak/valley detection, min/max storage, alarm/control
- Operating Temp: 0 to 50°C, Storage: -40 to 85°C
- Display Options: Red or green LED
Buy the OMEGA Series DP41 Thermocouple Indicator: DP41TCS2
Purchase the OMEGA Series DP41TCS2 thermocouple indicator online today to enhance your industrial temperature measurement accuracy. Equipped with high-resolution displays, multiple thermocouple types, and versatile communication options, this meter ensures reliable and real-time data logging. Its NEMA 4 enclosure provides durability in harsh environments, while front-panel programming simplifies setup. Take advantage of online ordering for quick delivery and technical support, making your temperature monitoring efficient, precise, and simple for all industrial applications.
Order your OMEGA Series DP41TCS2 thermocouple indicator today and ensure precise temperature measurements for your industrial processes.
