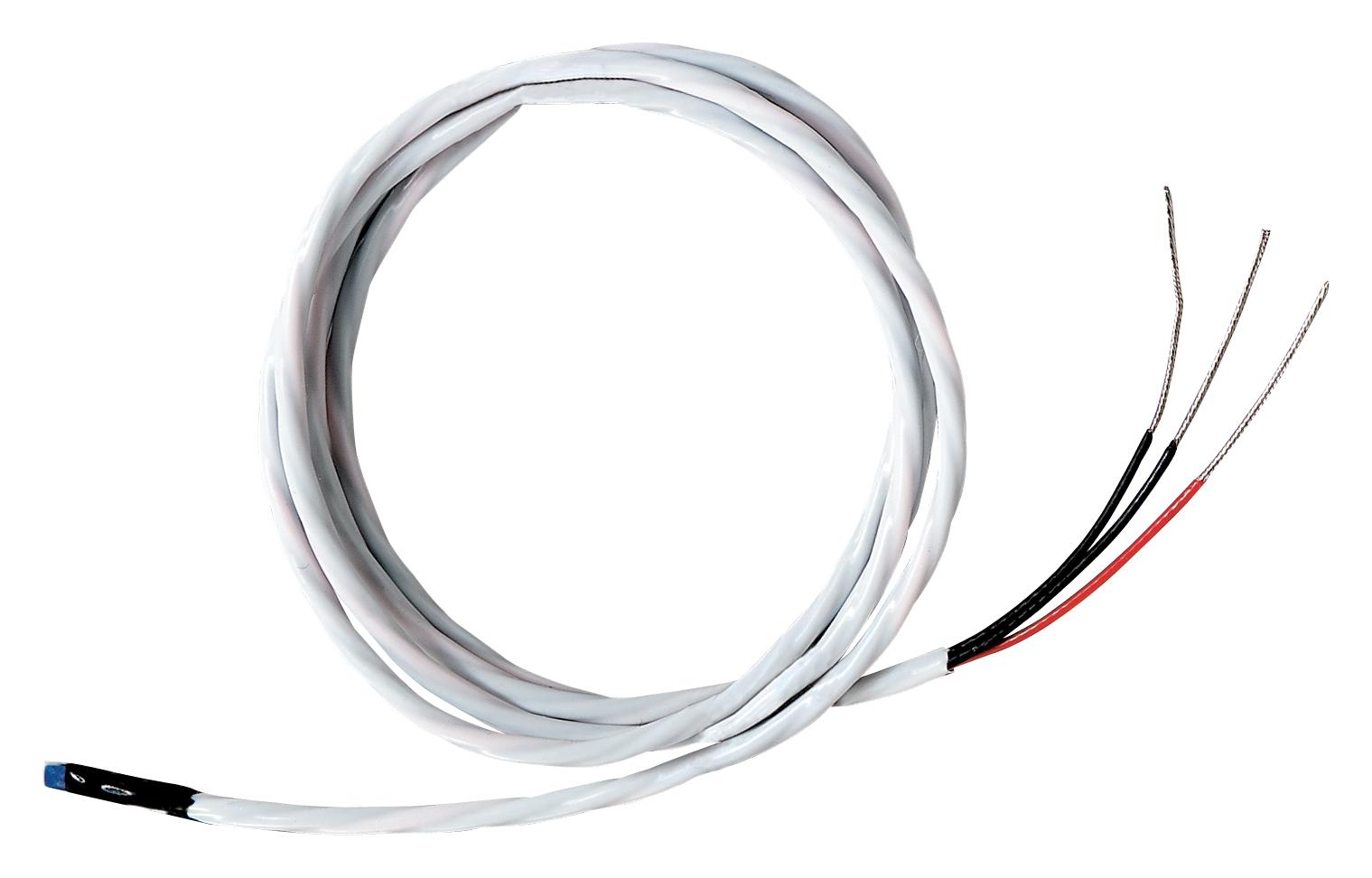

OMEGA RTD2F310536G Industrial RTD Sensor
Omega's RTD sensors offer rapid thermal response with exposed RTD elements and fiberglass-insulated lead wires, suitable for precise temperature measurement from -30°C to 300°C. Available in various styles including thin film and wire wound elements, these sensors feature high accuracy, Class A, Pt100 and Pt1000 elements, with quick response times less than 1 second. Constructed with #26 AWG stranded nickel-plated copper cable, they are ideal for industrial applications requiring robust, reliable temperature sensing with customizable lead lengths and connection options.
OMEGA RTD2F310536G Industrial RTD Sensor Specifications:
- Element Types: Thin film, wire wound
- Element Size: 2x2mmL, 4x5mmL, 1.5 Dia. x 25mmL, 2.8 Dia. x 25mmL
- Resistance at 0°C: 100Ω or 1000Ω
- Accuracy: Class A ±0.06Ω, Class B ±0.60Ω
- Operating Range: -30°C to 300°C, -100°C to 450°C depending on style
- Thermal Response (63%): Less Than 1 Second
- Lead Wires: #26 AWG stranded nickel-plated copper, PFA insulated
- Cable Lengths: Standard 1m (40-inch), customizable in inches
- Cable Construction: Fiberglass insulated and jacketed
- Connection: Bare leads, optional connectors or terminal lugs
- Environmental Resistance: Suitable for industrial environments, high temperature applications
Buy the Omega RTD2F310536G – Reliable Temperature Sensor for Industrial Applications
Purchase Omega RTD sensors online for accurate, fast temperature measurement with exposed elements and fiberglass-insulated leads. Designed for industrial environments, these reliable sensors feature Class A Pt100 and Pt1000 elements, with various sizes and configurations including thin film and wire wound styles. With quick response times less than 1 second and customizable lead lengths up to 40 inches, they ensure precise temperature monitoring in high-temperature applications. Easy to install with optional connectors or terminal lugs, order now for dependable, industry-grade performance.
Get Omega RTD2F310536G today—built for precision and long-lasting durability in industrial temperature sensing.
Frequently Asked Questions
Where can I buy OMEGA RTD2F310536G?
You can click on the BUY or RFQ button to purchase RTD2F310536G from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part RTD2F310536G?
You can download the RTD2F310536G datasheet or visit the OMEGA website for support.
Who is the manufacturer of RTD2F310536G?
OMEGA
