OMEGA DP41ER4 Digital Process Meter Controller
The DP41ER4 high-performance digital meter/controller from Omega features a 6-digit 14-segment LED display, multiple input options including thermocouples, RTDs, voltage, and current, and advanced alarm and control capabilities. It offers high accuracy of ±0.005% reading, versatile inputs with programmable ranges, on-board sensor excitation, and remote communications via RS232 and RS485 protocols. Designed for industrial environments, it includes NEMA 4/IP65 front panel protection, optional relays, and analog outputs, making it ideal for precise process monitoring and control applications.
OMEGA DP41ER4 Digital Process Meter Controller Specifications:
- Display: 6-digit, 14-segment LED, 13.7 mm high
- Input Types: Thermocouple (J, K, T, E, R, S, B, N), RTD (2, 3, 4-wire, 6-6000 Ω), Voltage, Current
- Thermocouple Resolution: 0.01°C, Accuracy: 0.2°C
- RTD Resolution: 0.01°C, Accuracy: 0.2°C, Compatible with NIST platinum RTDs
- Input Ranges: Thermocouple types, 6 Ω to 6 kΩ RTDs, voltage (0 to 100V), current (0 to 20 mA)
- Power Supply: 115/230 Vac or 10-32 Vdc, Power Consumption: 6 W typical
- Enclosure: NEMA 4 (IP65) front panel rated, Panel cutout: 45 mm x 92 mm
- Operating Temp: 0-50°C, Storage Temp: -40 to 85°C
- Communication: RS232 and RS485 serial options, 19.2K baud, 300-9600 bps
- Outputs: 4 isolated open-collector setpoints, optional dual relays (7A), analog output (0-5V, 0-10V, 4-20mA)
- Dimensions: 48 mm H x 96 mm W x 165 mm D (1.89 x 3.78 x 6.5 inches)
- Additional Features: Min/Max storage, peak/valley detection, digital tare, front-panel programming, optional mechanical relays, BCD output
- Environmental: Humidity 95% RH non-condensing

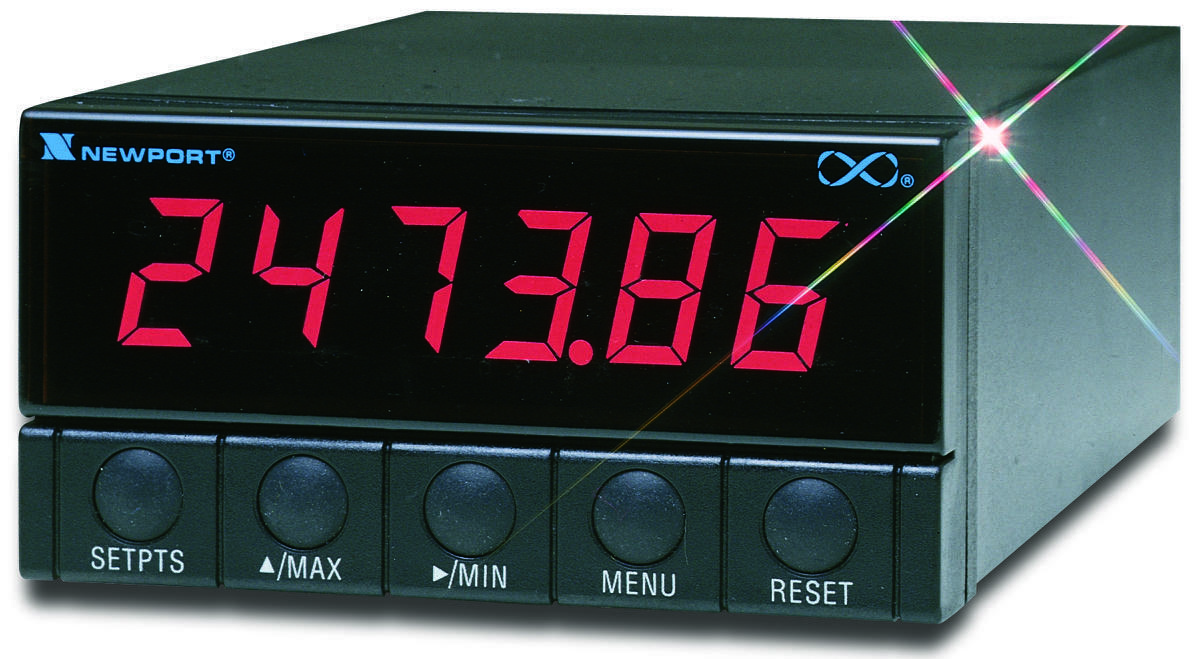

Buy the Omega Series DP41 Thermocouple RTD Voltage Current Indicator: DP41ER4
Purchase the Omega DP41ER4 digital process meter online today to benefit from high-accuracy measurements, versatile sensor compatibility, durable NEMA 4/IP65 enclosure, and advanced alarm/control features. This high-performance indicator offers adjustable ranges, multiple input types, serial communication options, and optional relays and analog outputs, making it ideal for industrial process monitoring and precision control. Easy front-panel programming, min/max storage, peak detection, and robust construction ensure reliability across a wide range of demanding applications. Order now for fast delivery and superior performance.
Buy Omega DP41ER4 now and experience unmatched reliability and high-precision process control with versatile inputs and durable IP65 protection.
Frequently Asked Questions
Where can I buy OMEGA DP41ER4?
You can click on the BUY or RFQ button to purchase DP41ER4 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part DP41ER4?
You can download the DP41ER4 datasheet or visit the OMEGA website for support.
Who is the manufacturer of DP41ER4?
OMEGA
