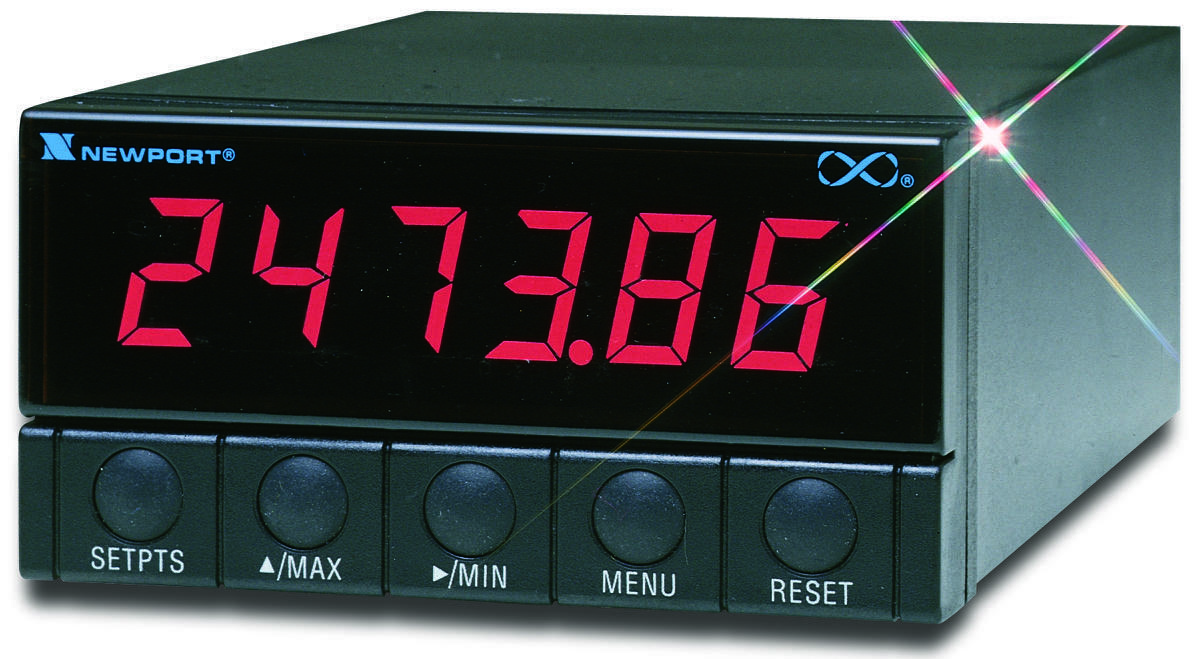

OMEGA DP41SAR4 Strain Gauge Meter
This high-performance strain gauge meter features a high-resolution six-digit display and is compatible with strain gauge bridge sensors or ratiometric voltage sensors. It offers adjustable filtering up to 13Hz, a display capacity of up to 999,999 counts, and a NEMA-4 rated front panel for durability. The device includes remote functions for tare, minimum and maximum measurements, reset, and data hold. Additionally, it supports minimum and maximum (peak and valley) detection for accurate measurement tracking.
OMEGA DP41SAR4 Strain Gauge Meter Specifications:
- Display: 6-digit, 14-segment LED, 15-bit resolution, up to 999,999 counts
- Display Height: 13.7 mm (0.54 inches)
- Filtering: Adjustable up to 13Hz
- Front Panel Rating: NEMA 4 (IP65)
- Input Compatibility: Strain gauges, bridge sensors, voltage sensors
- Functions: Remote tare, min/max storage, reset, data hold, peak/valley detection
- Power: 115 or 230 Vac, 6 W typical
- Dimensions: 48 H x 96 W x 165 mm D (1.89 x 3.78 x 6.5 inches)
- Panel Cutout: 45 H x 92 W mm
- Operating Environment: 0 to 50°C (32 to 122°F), 95% RH non-condensing
- Weight: 574 g (1.27 lb)
Buy the Omega DP41 – Reliable Strain Gauge Meter for Industrial Applications
Order the Omega DP41 strain gauge meter online now to ensure high accuracy and durability in industrial sensing. Its high-resolution display and remote data functions allow for precise measurement and easy monitoring of strain gauges and voltage sensors. Designed with a NEMA-4 front panel, it withstands tough conditions, making it perfect for your critical applications. With customizable filtering, min/max recording, Peak and Valley detection, and versatile power options, the DP41 delivers reliable performance and seamless integration into your measurement system. Purchase today for enhanced measurement confidence and operational efficiency.
Get Omega DP41 today—built for precision and long-lasting durability in demanding industrial environments.
Frequently Asked Questions
Where can I buy OMEGA DP41SAR4?
You can click on the BUY or RFQ button to purchase DP41SAR4 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part DP41SAR4?
You can download the DP41SAR4 datasheet or visit the OMEGA website for support.
Who is the manufacturer of DP41SAR4?
OMEGA
