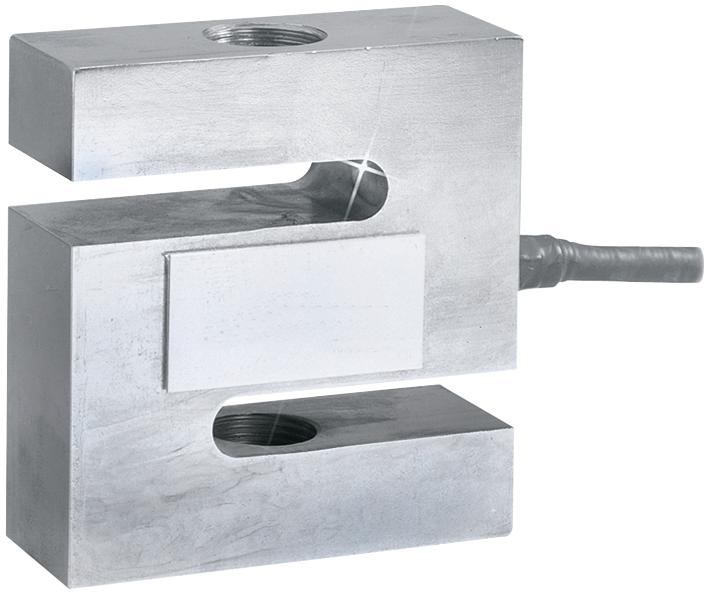

OMEGA LC10110K Stainless Steel Load Cell
This stainless steel load cell offers high accuracy for tension and compression applications, with capacities ranging from 0-25 Ib to 40,000 Ib. Designed for harsh industrial environments, it features 5-point calibration, a compact 98 mm size, and an excitation voltage of 10 Vdc. Constructed from corrosion-resistant 17-4 PH stainless steel, it provides reliable measurements with a zero balance of 0.002% FSO per °C and overload safety of 150%. Suitable for various measurement needs, it includes sealed electrical connections for durability and long-term stability.
OMEGA LC10110K Stainless Steel Load Cell Specifications:
- Material: 17-4 PH stainless steel
- Capacity: 0-25 Ib to 40,000 Ib
- Capacity: 0-10 kgf to 10,000 kgf
- Excitation: 10 Vdc, 15 Vdc maximum
- Output: 3 mV/V +0.0075 mV/V
- Sealing: +0.03% FSO, gland connector
- Operating Temp Range: -40 to 200°F
- Compensated Temp Range: 17 to 71°C (60 to 160°F)
- Zero Balance: 0.002% FSO/°C
- Span Temp Coefficient: 0.002% FSO/°C
- Overload Safety: 150%
- Dimensions: 98 mm size, detailed dimensions available externally
- Input Resistance: 350 ±10 Ω
- Output Resistance: 350 ±10 Ω
- Full Scale Deflection: 0.010 to 0.020 inches
Buy the Buy Omega Load Cell Part Number LC10110K Online
Order the Omega load cell online today for reliable and accurate tension or compression measurements up to 40,000 pounds. Featuring corrosion-resistant construction, sealed electrical connections, and a compact design, it is ideal for demanding industrial environments. With a 5-point calibration, excellent overload safety, and precise thermal stability, this load cell ensures consistent performance. Fast, secure ordering allows you to upgrade your measurement systems efficiently, providing the durability and accuracy needed for your application.
Buy Omega LC10110K load cell now and ensure precise tension and compression measurement with corrosion-resistant stainless steel construction.
