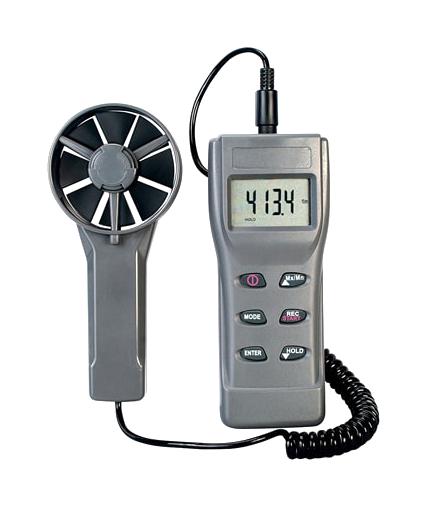

OMEGA HHF11A Air Velocity Meter
The HHF11A anemometer is a versatile device capable of measuring air flow, humidity, dew point, wet bulb temperature, air volume, and capacity. Equipped with a built-in microprocessor, it provides high accuracy and displays maximum, minimum, and current readings. Users can select the flow rate display in meters per second or cubic feet per minute. Its low-friction, ball-bearing mounted wheel ensures precise measurements at both high and low air velocities, with an impeller accuracy of 5% of full scale and sensitivity to breezes as low as 0.3 m/s. The lightweight design features a maneuverable measurement vane, auto power-off after 10 minutes of inactivity, and a large display. Additional features include Celsius/Fahrenheit temperature units and single-point averaging for air volume and capacity. The kit includes the anemometer, operator's manual, hard case, and four AAA batteries.
OMEGA HHF11A Air Velocity Meter Specifications:
- Air Velocity Range: 0.3 to 35 m/s (1 to 114 ft/s) with 5% accuracy, sensitivity to 0.3 m/s
- Air Volume: 0 to 99,999 m³/min (0 to 99,999 ft³/min) with 0.1 +5% precision
- Capacity: 0 to 99,999 BTU/h (0 to 99,999 kW) with 0.1 +3% accuracy
- Temperature Range: -20 to 60°C (-4 to 140°F) with 0.1°C/°F precision and +0.6°C (1°F) deviation
- Humidity Range: 3% from 10 to 90%, with 0.1% accuracy above 90%
- Dew Point: -68 to 70°C (-90 to 158°F) with 0.1°C/°F accuracy; Wet Bulb: -22 to 70°C (-7.6 to 158°F)
- Display Size: 34 x 47 mm, High-contrast 5-digit display, Digit height: 18 mm
- Power: 4 AAA batteries, Operating Current: 5-8 mA, Response Time: 1 second
- Cable Length: 50 cm extendable to 1.5 m, Vane Diameter: 74 mm, Vane Size: 164 x 74 x 40 mm
- Unit Size: 157 x 62 x 28 mm, Operating Temp: 0 to 50°C, Operating Humidity: <90% RH
- Certifications: NIST-traceable calibration, comes with manual, case, and batteries
Buy the Brand HHF11A – Reliable Air Velocity and Environmental Monitoring for Industrial Applications
Purchase the HHF11A anemometer online today to enhance your environmental and airflow measurements with high accuracy and ease of use. This versatile device measures air velocity, humidity, dew point, wet bulb temperature, air volume, and capacity, making it ideal for HVAC, industrial, and environmental monitoring. Its built-in microprocessor ensures precise readings, while features like auto power-off and single-point averaging improve usability. The kit includes a rugged case, operator's manual, and batteries, providing everything needed for professional-grade measurements in various settings.
Order your HHF11A anemometer today and equip your projects with precise air flow, humidity, and environmental measurement tools for reliable performance.
Frequently Asked Questions
Where can I buy OMEGA HHF11A?
You can click on the BUY or RFQ button to purchase HHF11A from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part HHF11A?
You can download the HHF11A datasheet or visit the OMEGA website for support.
Who is the manufacturer of HHF11A?
OMEGA
