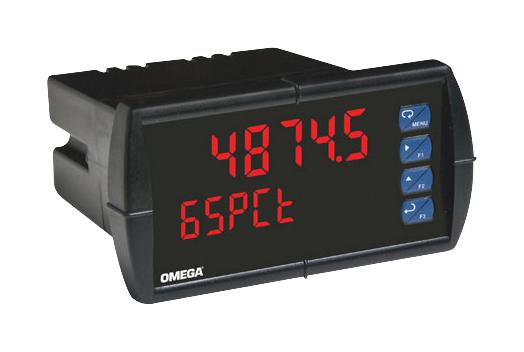

OMEGA DP60607H0 Process Panel Meter
The process panel meter offers advanced measurement capabilities with a dual-line 6-digit display, sunlight readability, and customizable input options such as 0 to 20 mA and 4 to 20 mA. It features MODBUS RTU communication, multiple power options, and relay control for alarms and automation. With programmable filtering, linearization, and high protection ratings (NEMA 4X/IP65), it is ideal for demanding industrial environments, providing reliable and accurate process monitoring with easy front-panel setup and data cloning for efficient deployment.
OMEGA DP60607H0 Process Panel Meter Specifications:
- Display: Dual-line 6 digits (-99999 to 999999), LED with 8 intensity levels
- Display Size: Upper 15 mm (0.60"), Lower 12 mm (0.46")
- Environmental: NEMA 4X (IP65) front panel, operating -40 to 65°C, humidity 0-90%
- Power: Universal 85-265 Vac or 12/24 Vdc with optional 24 Vdc transmitter supply
- Input: Configurable 0-20 mA, 4-20 mA, 0-5V, 1-5V, +10V; accuracy +0.03% span
- Relays: 2 or 4 SPDT or SPST, rated 3 A @ 30 Vdc, resistive load
- Communication: MODBUS RTU protocol, baud rate 300-19200 bps, slave ID 1-247
- Dimensions: 119 W x 62 H x 143 mm D (4.68 x 2.45 x 5.64")
- Input impedance: Voltage >1 MΩ, Current 50-100 Ω; isolation 4 kV input/output
- Temperature Range: -40°C to +65°C, storage -40°C to +85°C
Buy the Buy Omega DP6000 Series Process Panel Meter Part Number DP60607H0 Online
Purchase the Omega DP6000 series Process Panel Meter online today to enhance your industrial control system. Featuring sunlight-readable displays, versatile inputs, and MODBUS communication, this meter ensures precise process monitoring even in harsh environments. Its NEMA 4X enclosure guarantees durability against dust, moisture, and demanding conditions. With easy front panel programming, relay outputs for alarms, and a built-in copy function for quick setup, this versatile device simplifies integration and maximizes operational efficiency in your facility.
Buy Omega DP6000 series process panel meter now and experience unmatched reliability and performance for industrial process monitoring.
Frequently Asked Questions
Where can I buy OMEGA DP60607H0?
You can click on the BUY or RFQ button to purchase DP60607H0 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part DP60607H0?
You can download the DP60607H0 datasheet or visit the OMEGA website for support.
Who is the manufacturer of DP60607H0?
OMEGA
