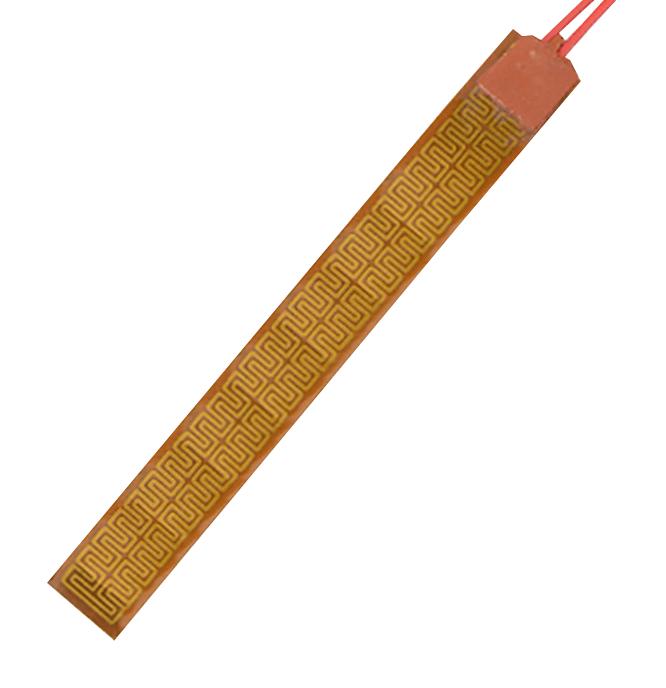

OMEGA KHLVA05045P Polyimide Heater
Polyimide film insulated flexible heater designed for precise temperature control up to 150°C (302°F). This heater features an etched foil design with a maximum thickness of 0.010 inches and offers watt density options of 2.5, 5, or 10 W/in. Its flexible, lightweight construction includes a PTFE-insulated, UL 1180-rated stranded wire and optional pressure-sensitive adhesive for easy application. Suitable for various industrial heating applications, this heater provides reliable performance, high dielectric strength of 1250 VAC, and durable materials resistant to chemicals and high temperatures, ensuring efficient heat transfer in tight spaces.
OMEGA KHLVA05045P Polyimide Heater Specifications:
- Operating Temperature: -57°C to 150°C without PSA, -40°C to 149°C with PSA
- Maximum Thickness: 0.010 inches
- Dielectric Strength: 1250 VAC for 1 second
- Watt Density Options: 2.5, 5, or 10 W/in
- Construction: Polyimide material encasing with Inconel 600 resistive foil element
- Wire: Stranded UL 1180, PTFE insulated, AWG 22
- Minimum Bending Radius: 0.032 inches
- Material Resistance: Chemical resistance and high temperature durability
- Voltage Options: 115V, 230V, 28V (model dependent)
- Wattage Ratings: Varying models with specific dimensions and watt per inch specifications
- Certifications: UL Listed for safety and performance
Buy the Omega Series Polyimide Heater: KHLVA05045P
Purchase the Omega Series Polyimide Heater KHLVA05045P online today and benefit from high-quality, flexible heating solutions designed for demanding industrial environments. With adjustable watt densities of 2.5, 5, or 10 W/in, this heater offers exceptional temperature control up to 150°C and features a durable etched foil design encased in polyimide and optional adhesive backing for easy installation. Ideal for chemical-resistant, lightweight, and space-constrained applications, this heater ensures reliable performance, high dielectric strength, and long-lasting operation to improve your manufacturing, processing, or laboratory processes.
Order your Omega SeriesPolyimide Heater KHLVA05045P today and ensure reliable, efficient heating for your industrial projects.
Frequently Asked Questions
Where can I buy OMEGA KHLVA05045P?
You can click on the BUY or RFQ button to purchase KHLVA05045P from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part KHLVA05045P?
You can download the KHLVA05045P datasheet or visit the OMEGA website for support.
Who is the manufacturer of KHLVA05045P?
OMEGA
