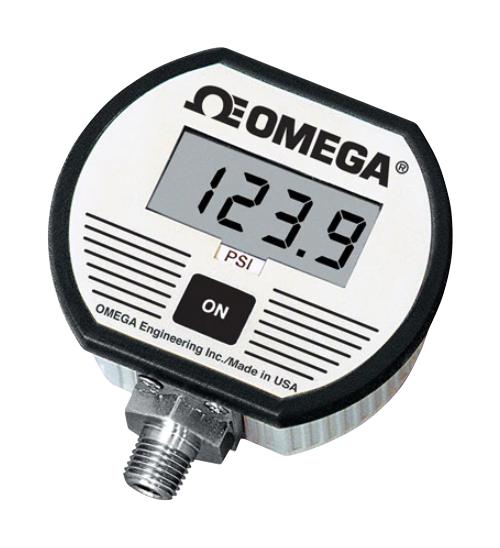

OMEGA DPG1000B15G Digital Pressure Gauge
The DPG1000B-15G is a versatile digital pressure gauge featuring ±0.25% accuracy, suitable for pressure and vacuum applications. It offers a range of 0 to 15 psi, powered by standard AA batteries with approximately 2500 hours of operation, featuring an auto shut-off for extended battery life. The gauge has a large LCD display with 13 mm digits for easy reading, a rugged aluminum case, and a 316 stainless steel pressure connection compatible with liquids and gases. Ideal for industrial use, it provides precise, reliable pressure measurement in various environments.
OMEGA DPG1000B15G Digital Pressure Gauge Specifications:
- Power: 2 AA batteries, approximately 2500 hours typical operation, auto shut-off after 5 minutes, low-battery warning present
- Display: LCD, 13 mm digit height, 3 readings/sec
- Accuracy: ±0.25% FSO, includes linearity, hysteresis, repeatability
- Range: 0 to 15 psi (0 to 100.0 psig), optional absolute range available
- Pressure Connection: 316 stainless steel, ¼-18 MNPT
- Wetted Parts: 316 stainless steel
- Operating Temperature: -20°C to 85°C (-4°F to 185°F)
- Storage Temperature: -55°C to 95°C (-67°F to 203°F)
- Weight: Approx. 255 g (9 oz)
- Case: Rugged extruded aluminum with epoxy coating, optional rubber boot
- Overpressure: 2x rated pressure, Burst pressure: 4x rated pressure
- Dimensions: 86 mm x 73 mm x 42 mm (3.38
Buy the Zetronic DPG1000B-15G U– Reliable Digital Pressure Gauge for Industrial Applications
Order the Zetronic DPG1000B-15G digital pressure gauge online today for accurate readings up to 15 psi. Its robust design, LCD display, and reliable battery power make it ideal for industrial pressure and vacuum measurements. Perfect for use in demanding environments, it offers fast response, ease of operation, and long-term durability. With a simple ordering process, you can ensure your pressure measurement needs are met quickly and efficiently, enhancing your operational efficiency.
Get Zetronic DPG1000B-15G today—built for precise pressure measurement and long-lasting battery life.
Frequently Asked Questions
Where can I buy OMEGA DPG1000B15G?
You can click on the BUY or RFQ button to purchase DPG1000B15G from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part DPG1000B15G?
You can download the DPG1000B15G datasheet or visit the OMEGA website for support.
Who is the manufacturer of DPG1000B15G?
OMEGA
