OMEGA KHLVA2025P Polyimide Heater

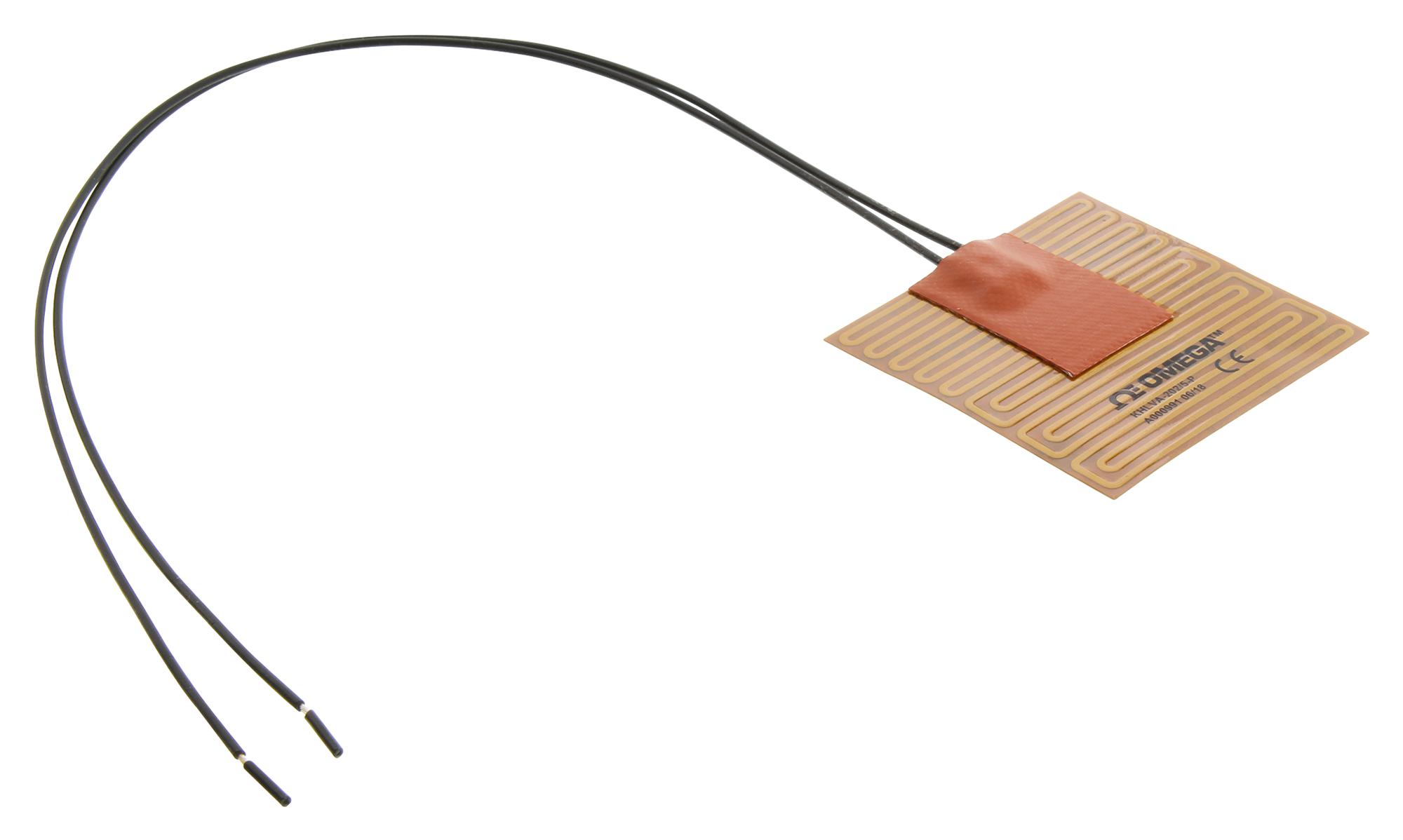

The KHLVA-2025P is a flexible polyimide film insulated heater designed for industrial applications. It features an etched foil design with a maximum thickness of 0.010 inches, wattage options of 2.5, 5, or 10 W/in?, and operating temperatures up to 150°C (302°F). Compatible with various sizes and shapes, it can be customized with optional pressure-sensitive adhesive. Ideal for precise, chemical-resistant, and high-temperature environments, it provides reliable, efficient heating for manufacturing and processing tasks.
OMEGA KHLVA2025P Polyimide Heater Specifications:
- Material: Polyimide film with etched foil design
- Maximum Thickness: 0.010"
- Wattage Ratings: 2.5, 5, 10 W/in? (total wattage dependent on size)
- Operating Temperature: -57°C to 150°C without PSA, -40°C to 149°C with PSA
- Dielectric Strength: 1250 Vac for 1 second
- Minimum Bending Radius: 0.032"
- Wires: Stranded, UL 1180, PTFE insulated, AWG 22
- Dimensions: Customizable based on selected model, typical sizes include 1 x 2 inches, 2 x 5 inches, etc.
- Options: Pressure Sensitive Adhesive (PSA) available, Tolerance: +10%
- Construction: Inconel 600 resistive foil, Polyimide casing
- Temperature Rating: Up to 150°C (302°F)
Buy the Omega KHLVA-2025P – Reliable Polyimide Heating Element for Industrial Applications
Get your Omega KHLVA-2025P polyimide heater online now. Designed for versatile industrial heating, it offers high temperature resistance, customizable sizes, and optional adhesive for easy installation. Perfect for manufacturing, testing, and maintenance, this flexible heater provides reliable performance in chemical-resistant environments. Its compact design and precise wattage options make it suitable for a wide range of applications where dependable heat is critical. Purchase today to improve efficiency and ensure high-quality results.
Order your Omega Series KHLVA-2025P flexible polyimide heater today and ensure precise, durable heating for your industrial manufacturing projects.
Frequently Asked Questions
Where can I buy OMEGA KHLVA2025P?
You can click on the BUY or RFQ button to purchase KHLVA2025P from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part KHLVA2025P?
You can download the KHLVA2025P datasheet or visit the OMEGA website for support.
Who is the manufacturer of KHLVA2025P?
OMEGA
