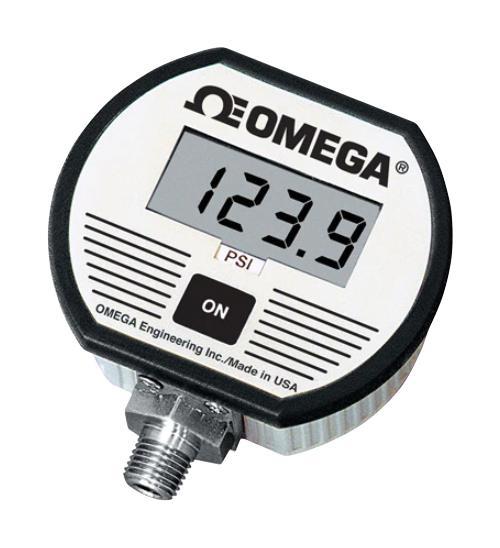

OMEGA DPG1000L100G Digital Pressure Transmitter
The DPG1000L digital pressure gauge offers precise measurement in a rugged, splashproof aluminum case with a large LCD display. Powered by a 4-20 mA current loop, it functions as a digital indicating transmitter for pressure or vacuum applications, with options for zero/span controls, test calibration, and low loop warning circuitry. Suitable for industrial environments, it features broad pressure ranges up to 5000 psi, and is ideal for continuous monitoring in process control systems, with easy connection via a two-conductor cable, simplifying installation and maintenance.
OMEGA DPG1000L100G Digital Pressure Transmitter Specifications:
- Power Supply: 4-20 mA loop powered, interface via 2-conductor cable
- Display: LCD, 13 mm (0.5 inches) digit height, 3 readings/sec
- Accuracy: +0.10% or +0.25% full scale, includes linearity and hysteresis
- Pressure Range: Up to 5000 psi (0 to 5000 psi) with various options
- Wetted Parts: 316 stainless steel, compatible with all liquids and gases suitable for 316 SS
- Operating Temperature: -20°C to 85°C (-4°F to 185°F)
- Storage Temperature: -55°C to 95°C (-67°F to 203°F)
- Case: NEMA 4X (IP66), UV stabilized polycarbonate/ABS, splashproof
- Connections: 316 SS %-18 MNPT, simple two-conductor cable
- Overpressure: 2x rated pressure, Burst pressure: 4x rated pressure
- Dimensions: Height 86 mm (3.38 in), Width 73 mm (2.88 in), Depth 42 mm (1.65 in)
Buy the Buy Industrial Digital Pressure Gauge Part Number DPG1000L100G Online
Order the DPG1000L digital pressure gauge online for accurate, real-time pressure monitoring in industrial settings. Its loop-powered design simplifies installation, and the large LCD ensures clear readings. Durable construction with NEMA 4X protection makes it suitable for harsh environments, while its broad pressure range up to 5000 psi meets diverse application needs. Easy to connect via a two-conductor cable, this dependable, easy-to-maintain pressure transmitter enhances your process control system with precision and reliability.
Get DPG1000L-500G today—built for precise pressure measurement and reliable process control with modern digital features.
Frequently Asked Questions
Where can I buy OMEGA DPG1000L100G?
You can click on the BUY or RFQ button to purchase DPG1000L100G from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part DPG1000L100G?
You can download the DPG1000L100G datasheet or visit the OMEGA website for support.
Who is the manufacturer of DPG1000L100G?
OMEGA
