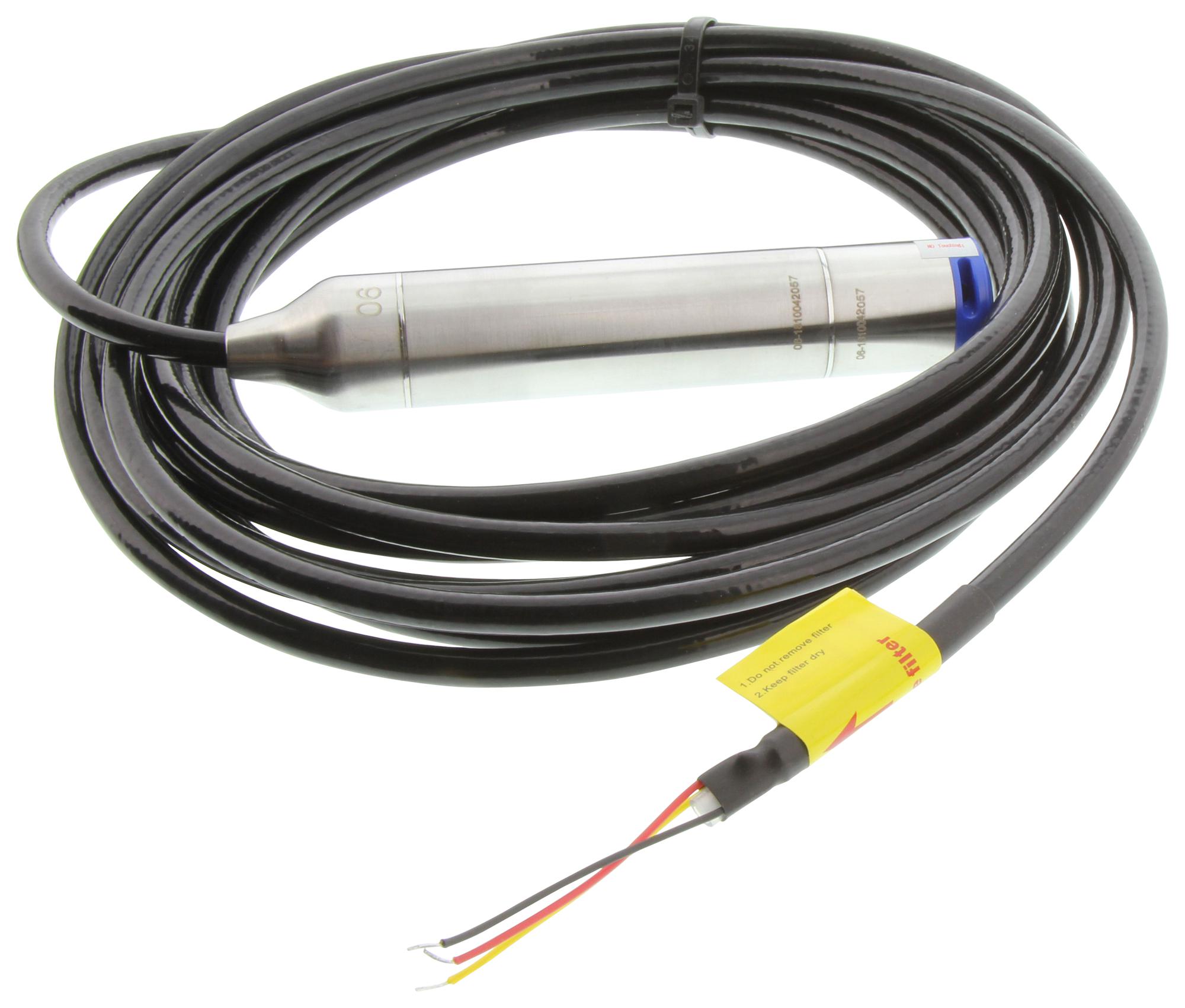

OMEGA PX633A2150GI Submersible Pressure Transmitter
The PX633 level transmitter offers high accuracy submersible pressure measurement suitable for demanding applications. It features advanced microprocessor technology, comprehensive temperature error compensation, and a rugged stainless steel body for long-term reliability. The sensor employs full potting, dual seals, and transient voltage protection for harsh environments. With various calibration options, CE certification, and a detailed calibration sheet, this transmitter ensures precise and stable level measurement in challenging conditions. It is ideal for industrial level monitoring, water treatment, and environmental sensing.
OMEGA PX633A2150GI Submersible Pressure Transmitter Specifications:
- Accuracy: 0.01% FS NLHR (PX633A1), 0.25% FS NLHR (PX633A2), 0.50% FS NLHR (PX633A5)
- Long Term Stability: +0.2% FS per year
- Power Supply: 10.5 to 55VDC
- Output Signal: 4 to 20mA DC
- Maximum Current: 20.8mA
- Transmission Distance: < 1000m
- Protection Class: IP68
- Operating Temperature: -10 to 70°C
- Storage Temperature: -30 to 80°C
- Diaphragm Material: 316 SS
- Fill Fluid: Silicon oil
- Electrical Connection: PUR cable, diameter 7.5mm
- Vibration Resistance: 20g, IEC61298-3/GB/T 18271.3
- Supply Voltage: 10.5 to 55VDC
- OEM cable options available
- Thread Connection: M20 and other threads available
Buy the Omega Series PX633 Submersible Pressure Transmitter: PX633A2150GI
Purchase the Omega PX633A2150GI submersible pressure transmitter online today and enjoy exceptional accuracy, durable stainless steel construction, and reliable performance across various industrial level measurement applications. This high-precision device is designed for complete submersion, offering excellent stability, temperature compensation, and long-term reliability. Ideal for water treatment, environmental sensing, and process control, it features easy installation, CE certification, and detailed calibration. Ensure your level measurement needs are met with this trusted, rugged, and easy-to-maintain sensor.
Buy Omega PX633A2150GI high accuracy submersible pressure transmitter now and ensure reliable level monitoring in demanding environments with advanced features.
Frequently Asked Questions
Where can I buy OMEGA PX633A2150GI?
You can click on the BUY or RFQ button to purchase PX633A2150GI from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part PX633A2150GI?
You can download the PX633A2150GI datasheet or visit the OMEGA website for support.
Who is the manufacturer of PX633A2150GI?
OMEGA
