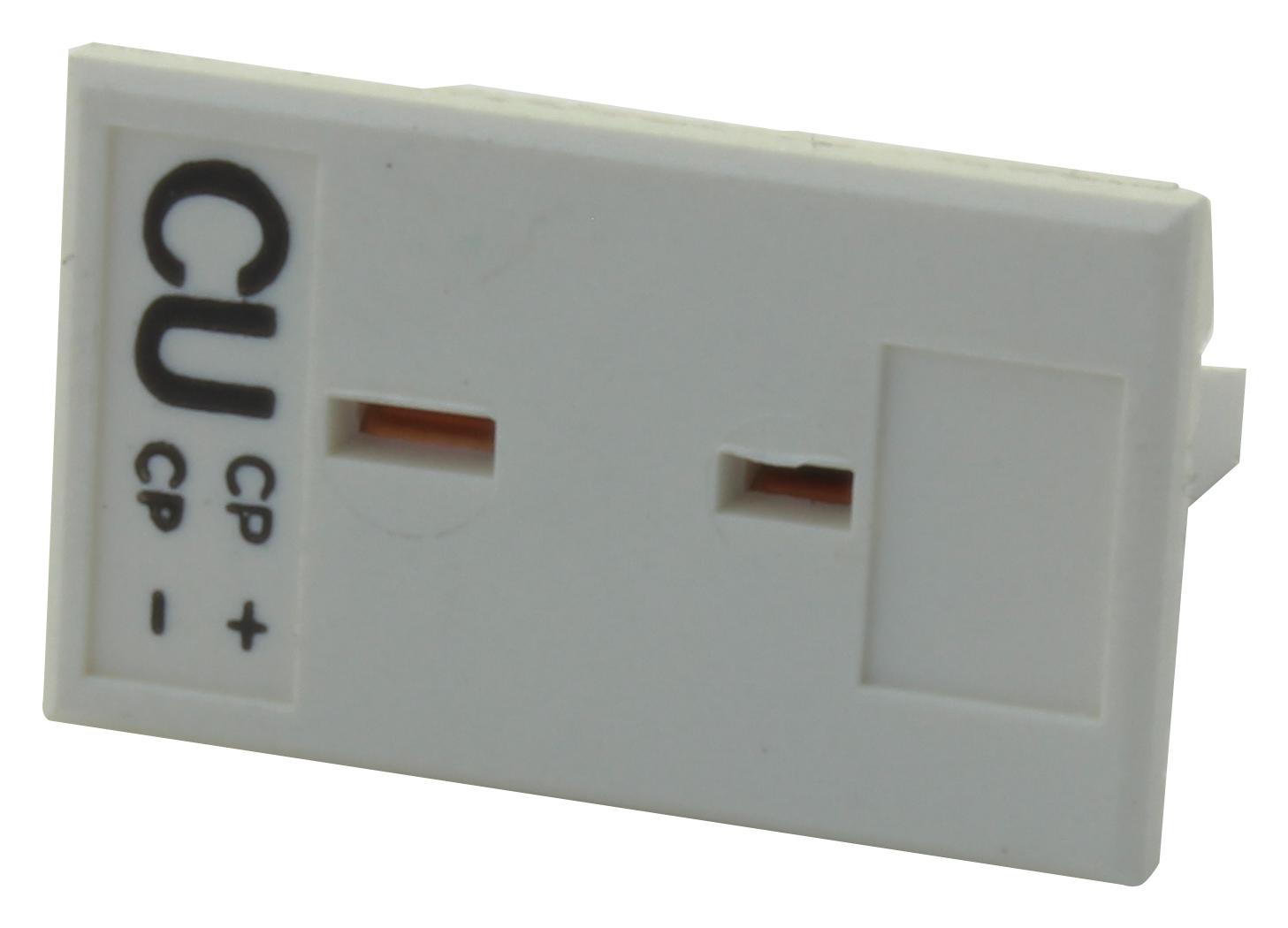

OMEGA MPJUF Miniature Panel Jack

The MPJ Series Miniature Panel Jack offers a compact, easy-to-mount connection solution for industry-standard miniature connectors, including thermocouples. Constructed from glass-filled nylon rated from -29 to 180°C, it features accessible terminal screws, color coding, and a spring clip mounting system, reducing panel space requirements. It accepts stranded or solid wire up to 0.8 mm. Compatible with various miniature connectors and available with optional labels and dust caps, this panel jack is ideal for precise, durable electrical connections in demanding industrial environments.

Authorized Distributors
Source:Newark
Part No:MPJ-U-F
Stock:27
Inv Date:06-12-2026
Price: Unit price: $5.49
Buy/RFQ:
Source:DigiKey
Part No:MPJ-U-F
Stock:0
Inv Date:06-12-2026
Price: Unit price: $5.49
Buy/RFQ:
Part No:MPJ-U-F
Stock:8
Inv Date:06-12-2026
Price: Unit price: $3.08
Buy/RFQ:

OMEGA MPJUF Miniature Panel Jack Specifications:

  • Material: Glass-filled nylon
  • Temperature Rating: from -29°C to 180°C
  • Dimensions: 8.1 x 16.7 mm (0.32 x 0.66 inches) cutout required
  • Mounting: Easy push-on clip or optional snap strip
  • Terminal Screws: Angled for post-panel wiring
  • Wire Range: Up to 0.8 mm (20 AWG) stranded or solid wire
  • Accepts: Miniature male connectors, industry standard connector types
  • Color Coding: Yes (varies per model)
  • Compatible with thermocouples: Types K, T, J, E, R, S, B, and Bare ANSI types
  • Dust Caps: Optional available
  • Certifications: Industry approved, UL/CSA compliant

Buy the Omega MPJUF – Reliable Miniature Panel Jack for Industrial Applications

Purchase the Omega MPJUF Miniature Panel Jack online for dependable, space-saving connections suitable for thermocouples and miniature connectors. Designed with easy mounting options, color coding, and high temperature resistance, it ensures accurate wiring in industrial applications. Compatible with industry-standard connectors, it accepts stranded or solid wire up to 0.8 mm diameter, providing versatility and durability in demanding environments. Order now and enjoy fast, reliable delivery for your electrical instrumentation needs.

Get Omega MPJUF today—built for precise and long-lasting industrial electrical connections.

Frequently Asked Questions

Where can I buy OMEGA MPJUF?

You can click on the BUY or RFQ button to purchase MPJUF from an authorized OMEGA distributor.

How do I troubleshoot issues or seek technical support for part MPJUF?

You can download the MPJUF datasheet or visit the OMEGA website for support.

Who is the manufacturer of MPJUF?

OMEGA
