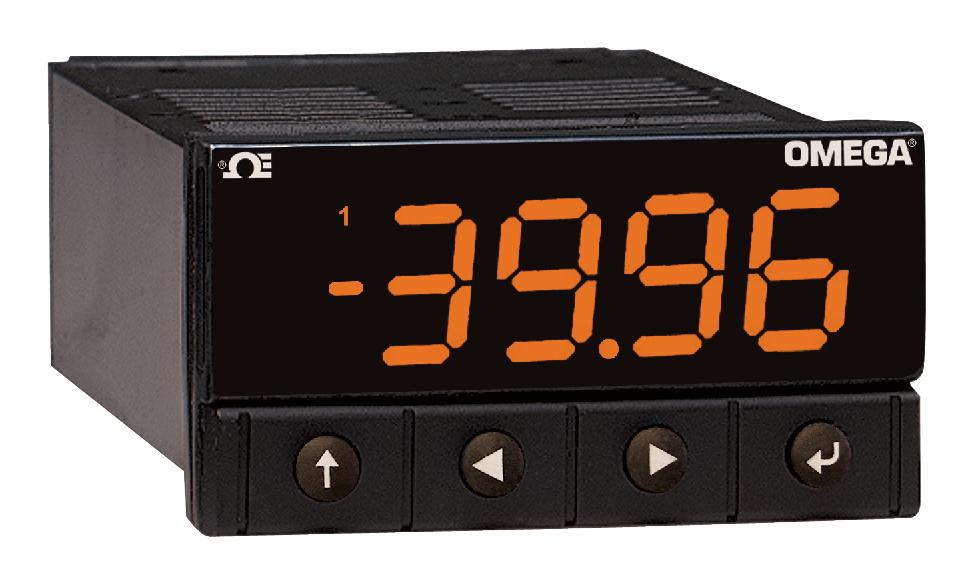

OMEGA CN32PT330 Temperature Process Controller
The CN32PT330 is a high-performance temperature and process controller designed for industrial automation and research applications. Featuring a bright three-color LED display with wide viewing angles, it supports universal inputs, including thermocouples, RTDs, thermistors, analog voltage, current, and strain. It offers up to 99 programmable programs with 16 ramps and soaks, advanced PID autotuning with fuzzy logic, and multiple output options such as alarms, relays, DC pulse, and analog signals. Its embedded Ethernet and USB interfaces enable easy configuration, firmware updates, and data transfer, making it ideal for precise control in demanding environments.
OMEGA CN32PT330 Temperature Process Controller Specifications:
- Display: 4-digit, 9-segment LED, wide viewing angle, 4 or 6 digit options
- Input Types: Thermocouples, RTDs, thermistors, analog voltage/current, strain
- Thermocouple Types: J, K, T, E, R, S, B, C, N
- RTD: 100/500/1000 Ω, 2/3/4 wire, PT-100/500/1000Ω with curves 385, 392, 3916
- Thermistors: 2252 Ω, 5K Ω, 10K Ω
- Input Impedance: Process/strain 10 MΩ, voltage 10 kΩ, current 5Ω
- Sampling Rate: Up to 20 samples/sec with 24-bit ADC
- Control Modes: PID with autotune, fuzzy logic adaptive control, ON/OFF, heat/cool
- Outputs: 2 to 6 programmable alarms/controls with DC pulse, SSR, relay, or analog options
- Communication: Standard USB, optional Ethernet RJ45, RS232/RS485, MODBUS
- Power: 90-240 Vac, optional low voltage 12-36 Vdc
- Isolation & Certification: UL, cUL, CE; 2300 Vac withstands, NEMA enclosure options
- Additional features: Remote setpoint, cascade control, high accuracy inputs, high resolution data logging
- Size: 45 mm (1.772”) low-voltage model, with panel cutout dimensions compatible with DIN standards
Buy the Buy OMEGA CN32PT330 Temperature Process Controller Part Number CN32PT330 Online
Enhance your automation system with the high-performance OMEGA Temperature Process Controller CN32PT330. Featuring universal inputs, advanced PID autotuning, and multiple configurable outputs, it provides precise temperature and process control. With embedded Ethernet, USB, and serial interfaces, setup, firmware updates, and data transfer are straightforward. Suitable for demanding environments, its robust design and certification ensure long-term reliability. Purchase online today to improve your process efficiency and achieve professional-grade control in industrial and laboratory applications.
Order your OMEGA SeriesCN32PT330 temperature and process controller today and experience reliable precision control for industrial and research applications.
Frequently Asked Questions
Where can I buy OMEGA CN32PT330?
You can click on the BUY or RFQ button to purchase CN32PT330 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part CN32PT330?
You can download the CN32PT330 datasheet or visit the OMEGA website for support.
Who is the manufacturer of CN32PT330?
OMEGA
