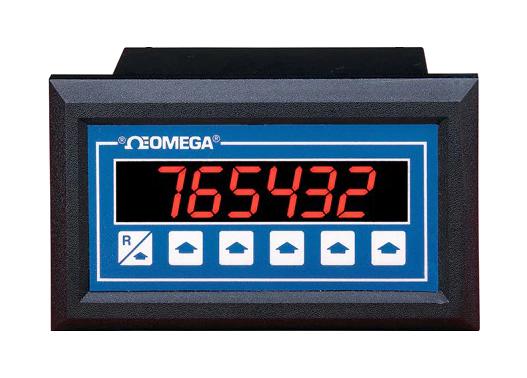

OMEGA DPF64 Flow Rate Indicator
This digital ratemeter and totalizer features front-panel programming, scaling, and a floating decimal display for rates and totals up to 59,999. It accepts various analog inputs, includes two 5A SPDT relays for alarms or control, and offers optional square-root extraction for flow measurement. Its robust design features a NEMA 4X (IP66) rated front panel, real-time peak and valley readings, and configurable rate units per second, minute, or hour. Suitable for process flow monitoring with high accuracy, the unit also provides remote reset, latch or auto-recycle relays, and non-volatile memory retention.
OMEGA DPF64 Flow Rate Indicator Specifications:
- Accuracy: +0.15% FS for rate and total
- Display: 15 x 8 mm LED, 6 digits for rate, 5 digits for total
- Input: 4-20 mA, 0-20 mA, 0-5 V, 1-5 V (scalable scaling)
- Relays: 2 SPDT relays, 5 A @ 250 Vac, latch or auto-recycle
- Power: 94-126 Vac, 50/60 Hz (standard); 12-24 Vdc (optional); 187-253 Vac, 12-24 Vdc (optional)
- Temperature Range: Operating 5 to 54°C, Storage -40 to 93°C
- Dimensions: Panel cutout 45 H x 92 W mm, DIN standard, 112 mm depth
- Memory: Non-volatile RAM retains settings up to 1 year without power
- Additional Options: Analog output, RS232/RS422 communication, square-root extraction
Buy the Omega Series DPF66 Flow Measurement: DPF66
Purchase the Omega DPF66 flow measurement device online today. Designed for process control and accurate flow monitoring, it offers scalable inputs, reliable relays with adjustable settings, and optional communication interfaces. Its robust NEMA 4X rating ensures durability in harsh environments. With advanced features like square-root extraction, peak/valley readings, and remote reset, this digital rate and totalizer is ideal for industrial flow measurement, batch control, and automation systems. Order now for fast delivery and ongoing technical support.
Get Omega DPF66 today—built for precision and long-lasting durability in flow and process control applications.
Frequently Asked Questions
Where can I buy OMEGA DPF64?
You can click on the BUY or RFQ button to purchase DPF64 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part DPF64?
You can download the DPF64 datasheet or visit the OMEGA website for support.
Who is the manufacturer of DPF64?
OMEGA
