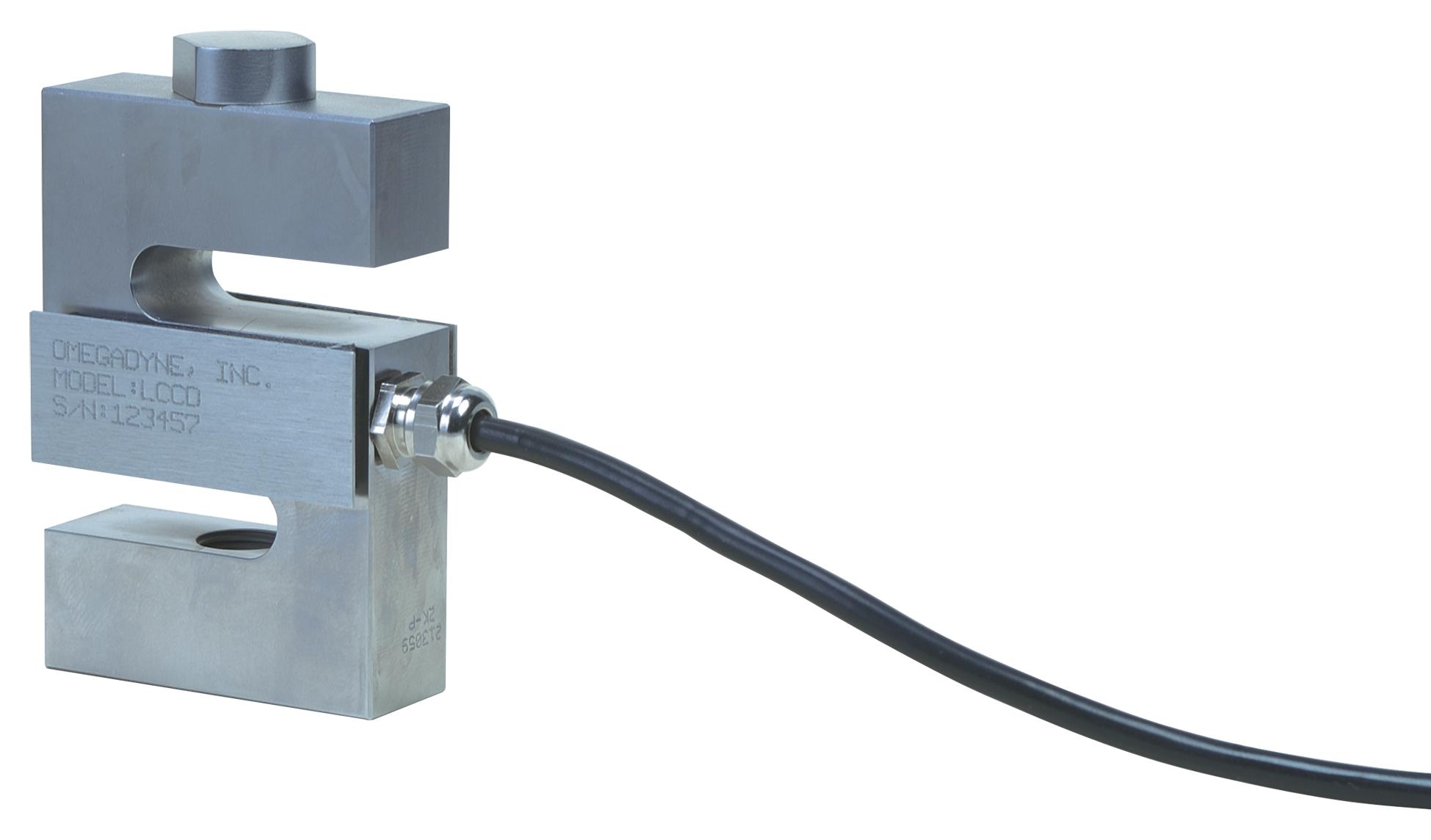

OMEGA LCCD100 Stainless Steel Load Cell
The LCCD-100 from Omega is a stainless steel, environmentally protected S-beam load cell with a capacity of 100 lb (45 kg). Designed for reliable performance in harsh industrial environments, it features a 10 VDC excitation voltage (maximum 15 VDC), with an output of 3 mV/V ±0.25%. The load cell provides high precision measurements with 0.03% full scale linearity, 0.02% hysteresis, and 0.01% repeatability. It has a zero balance of 1% full scale and a creep of 0.03% FS over 20 minutes. The operating temperature range is from -18°C to 66°C (0°F to 150°F). The maximum safe load is 150% of capacity, with an ultimate load of 300%. The sensor has a nominal bridge resistance of 350 ohms and is constructed from 17-4PH stainless steel. It includes a 6-meter (20-foot) shielded 4-conductor PVC cable with 22 AWG wire. It is compatible with DPiS, DP41-S, and DP25B-S meters. The package contains the load cell, a 5-point NIST-traceable calibration, and 59K ohm shunt data.
OMEGA LCCD100 Stainless Steel Load Cell Specifications:
- Capacity: 100 lb (45 kg)
- Material: 17-4PH stainless steel
- Cable: 6 m (20') 4-conductor shielded PVC wire, 22 AWG
- Excitation Voltage: 10 Vdc (max 15 Vdc)
- Output: 3 mV/V ±0.25%
- Linearity: 0.03% FS
- Hysteresis: 0.02% FS
- Repeatability: 0.01% FS
- Zero Balance: 1% FS
- Creep: 0.03% FS over 20 min
- Operating Temperature: -18°C to 66°C (0°F to 150°F)
- Bridge Resistance: 350 ohms
- Maximum Safe Load: 150% of capacity
- Ultimate Load: 300% of capacity
- Includes calibration certificate and shunt data
Buy the Omega LCCD-100 – Reliable Load Cell for Industrial Applications
Purchase the Omega LCCD-100 load cell online today and get a high-quality, environmentally protected sensor designed for accurate load measurement in tough industrial environments. With a capacity of 100 lb, this stainless steel sensor offers superior reliability, a durable shielded cable, and includes a calibration certificate for traceability. Its robust construction and high accuracy make it ideal for a wide range of industrial, manufacturing, and research applications. Order now to ensure your projects are equipped with dependable sensors for precise load monitoring.
Order your Omega SeriesLCCD-100 100 lb load cell today and ensure precise measurements for your industrial projects with dependable performance.
Frequently Asked Questions
Where can I buy OMEGA LCCD100?
You can click on the BUY or RFQ button to purchase LCCD100 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part LCCD100?
You can download the LCCD100 datasheet or visit the OMEGA website for support.
Who is the manufacturer of LCCD100?
OMEGA
