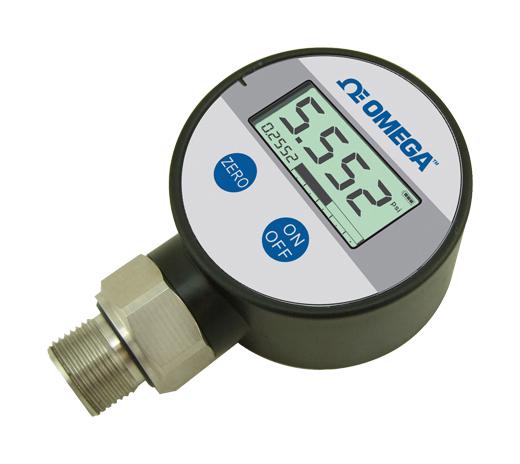

OMEGA DPG108015V Digital Pressure Gauge
The DPG108 is a battery-powered digital pressure gauge designed for on-site use in industrial environments such as hydropower, water, petroleum, chemical, and hydraulic industries. It features a high-precision piezo-resistive sensor, amplified output, and a microprocessor with LCD display capable of measuring pressures from -0.1 to 100 MPa. The device supports multiple engineering units, automatic max pressure recording, auto shut-off, and is rated IP65/IP68 with a silicone case. Its user-friendly interface includes menu navigation, calibration, and data modification functions, making it a reliable, maintenance-friendly solution for precise pressure monitoring.
OMEGA DPG108015V Digital Pressure Gauge Specifications:
- Measuring Range: -0.1 to 100 MPa
- Engineering Units: psi, bar, kPa, MPa, kg / cm²
- Overload Pressure: 150%~200%
- Pressure Type: G/AID
- Stability: <0.1% FS per year
- Power Supply: Battery (not specified)
- Display: 4 Digits LCD
- Accuracy: 20.25% for gauge pressure, 40.5% FS for absolute, vacuum, and other ranges
- IP Rating: IP65 / IP68 with Silicone case
- Sampling Rate: Four times per second
- Operating Temperature: -20°C to +70°C
- Relative Humidity: 20-90%
- Thread Size: V4 NPT
- Thread Material: Stainless Steel
- Dimensions: Not specified, compact portable design.
Buy the Buy Omega Pressure Gauge Part Number DPG108015V Online
Purchase the Omega Digital Pressure Gauge DPG108015V online today for accurate, reliable pressure measurement in industrial settings. Its high-resolution LCD, multiple units support, max pressure recording, and IP65/IP68 rating ensure durability and performance. Easy to operate with menu-driven features, auto shut-off, and calibration options, this portable device is perfect for hydraulic, water, chemical, and petroleum industries. Order now to improve your pressure monitoring accuracy and efficiency with a trusted, maintenance-friendly instrument designed for long-term use.
Buy Omega DPG108015V now and experience unmatched reliability and precision in pressure measurement for industrial applications.
Frequently Asked Questions
Where can I buy OMEGA DPG108015V?
You can click on the BUY or RFQ button to purchase DPG108015V from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part DPG108015V?
You can download the DPG108015V datasheet or visit the OMEGA website for support.
Who is the manufacturer of DPG108015V?
OMEGA
