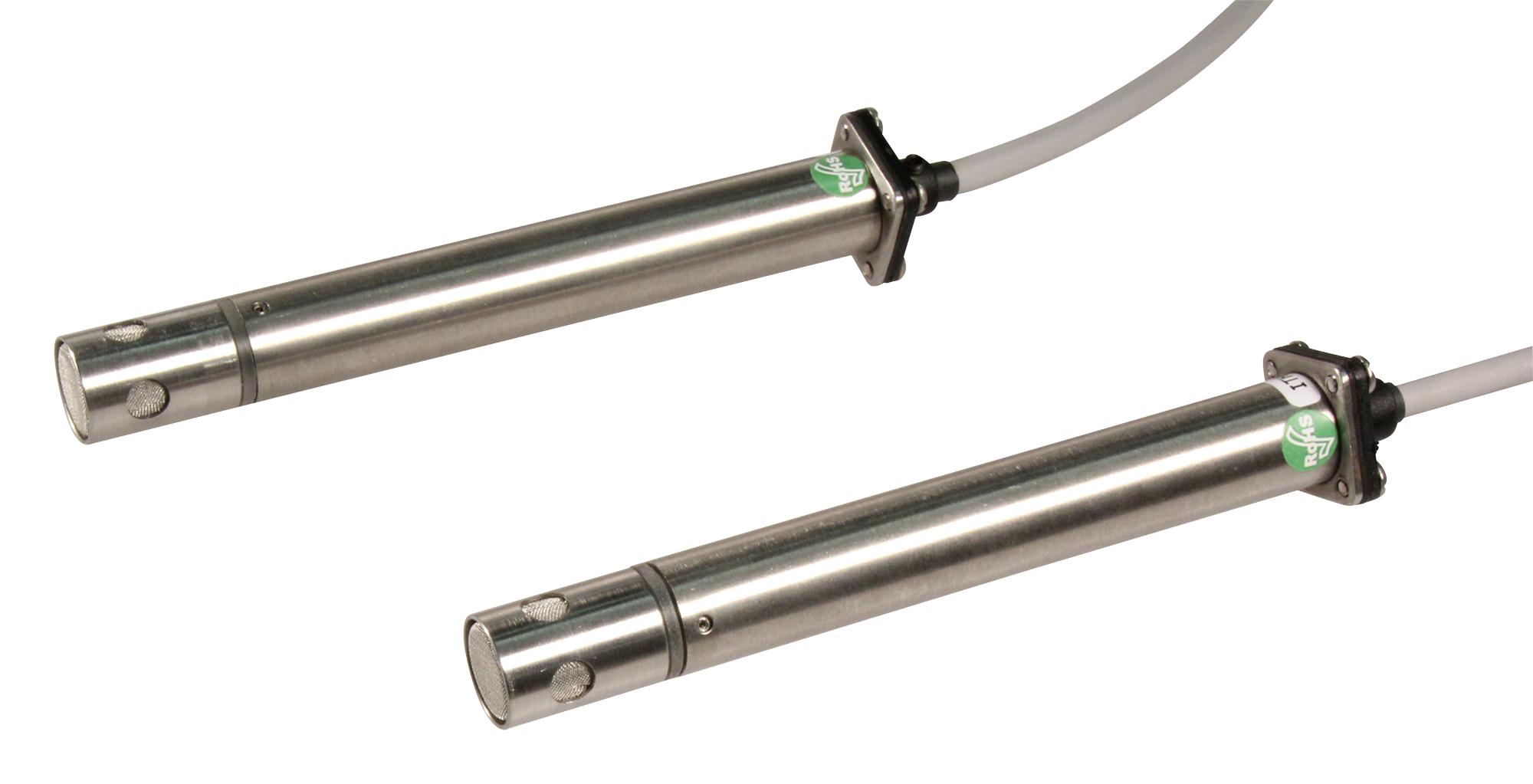

OMEGA ITHP5 Temperature Humidity Probe
The temperature and humidity virtual chart recorder features an industrial probe measuring 137 mm (5 inches), equipped with a 3-meter cable suitable for extensive environmental monitoring. It provides real-time data display, adjustable charts across various time spans, and supports remote monitoring via web browser with no proprietary software needed. With integrated alarms, email notifications, and optional IP camera links, it is ideal for clean rooms, laboratories, HVAC, food storage, and manufacturing environments. Easy to install and configure, it ensures precise, reliable environmental monitoring with NIST-traceable calibration options.
OMEGA ITHP5 Temperature Humidity Probe Specifications:
- Sensor Type: Industrial temperature and humidity probe
- Probe Length: 137 mm (5 inches)
- Cable Length: 3 meters (10 feet)
- Housing Material: Polycarbonate
- Environmental Operating Temperature: -40 to 85°C (-40 to 185°F)
- Storage Temperature: -40 to 125°C (-40 to 257°F)
- Humidity Accuracy/Range: +2% RH from 10 to 90%, +3% RH from 5 to 10% and 90 to 95%, +4% RH from 0 to 5% and 95 to 100%
- Temperature Accuracy/Range: +0.5°C (+1°F) for 5 to 45°C, up to +1.5°C (+2.7°F) outside this range
- Response Time: 5 to 30 seconds
- Repeatability: +0.1°C, +0.1% RH
- Display: Web-based real-time readings and adjustable charts
- Connectivity: Ethernet RJ45, TCP/IP, SNMP, SMTP, HTTP, Telnet
- Power Supply: 10 to 32 Vdc, optional 24 Vdc power supply for multiple units
- Size: Compact DIN rail mounting case, weight 113 g (0.25 lb)
Buy the Buy Omega ITHP5 Temperature Humidity Probe Part Number ITHP5 Online
Enhance your environmental monitoring setup with the Omega industrial temperature and humidity probe, featuring a 137 mm (5 inches) sensor and 3-meter cable. Easily integrated into networks with web access, it allows real-time data viewing and adjustable charts. Perfect for cleanrooms, labs, food storage, HVAC, and manufacturing, it ensures precise conditions with optional NIST calibration certificates. Its rugged design with DIN rail mounting guarantees durability and easy installation, providing accurate, dependable data critical for maintaining optimal environmental conditions.
Order your Omega iTHX-D3 industrial environment monitoring system with industrial probe today and ensure reliable temperature and humidity data logging.
Frequently Asked Questions
Where can I buy OMEGA ITHP5?
You can click on the BUY or RFQ button to purchase ITHP5 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part ITHP5?
You can download the ITHP5 datasheet or visit the OMEGA website for support.
Who is the manufacturer of ITHP5?
OMEGA
