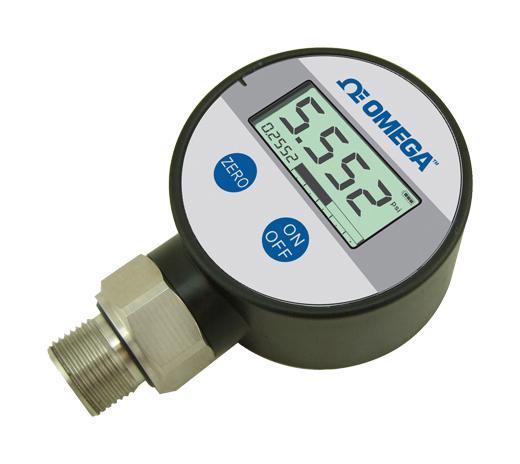

OMEGA DPG108100A Digital Pressure Gauge
The DPG108 is a battery-powered digital pressure gauge featuring a high-precision piezo-resistive sensor, amplified with low temperature drift, and processed by a high-accuracy A/D converter. It has a backlit LCD, measures from -0.1 to 100 MPa, and supports five units: psi, bar, kPa, MPa, kg/cm. Its rugged IP65/IP68 enclosure ensures durability with stainless-steel threads. It offers versatile operation, including auto shut-off, peak recording, and menu customization, making it ideal for industries like water, petroleum, and chemical processing, providing reliable, precise pressure measurements.
OMEGA DPG108100A Digital Pressure Gauge Specifications:
- Measuring Range: -0.1 to 100 MPa
- Engineering Units: psi, bar, kPa, MPa, kg/cm
- Overload Pressure: 150% to 200%
- Pressure Type: Gauge (G), Absolute (A), Differential (ID)
- Stability: <0.1% FS per year
- Power Supply: 9 V battery
- Display: 4 digits LCD, backlit
- Accuracy Range: 0.25% FS for gauge pressure, 0.5% FS for others
- IP Rating: IP65/IP68 with silicone case
- Sampling Rate: 4 times/sec
- Operating Temp: -20°C to 70°C
- Relative Humidity: Up to 90%
- Thread Size: V4 NPT
- Thread Material: Stainless Steel
- Total Dimensions: [Refer to device specifics, approximate size: varies by configuration]
Buy the Omega Series DPG108 Digital Pressure Gauge Accurate Industrial Measurement
Purchase the Omega DPG108 digital pressure gauge online today and experience accurate, dependable pressure readings for water, petrochemical, and industrial applications. Its high-resolution backlit LCD, versatile units, and durable construction make it ideal for in-field use. Designed for easy operation, optional auto shut-off, and peak recording ensure efficiency and reliability in demanding environments. Get your precise pressure measurement device now and improve your process control with confidence, backed by Omega's industry-leading quality and customer support.
Order your Omega Series DPG108 digital pressure gauge today and ensure precise, reliable pressure measurement for your industrial projects.
Frequently Asked Questions
Where can I buy OMEGA DPG108100A?
You can click on the BUY or RFQ button to purchase DPG108100A from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part DPG108100A?
You can download the DPG108100A datasheet or visit the OMEGA website for support.
Who is the manufacturer of DPG108100A?
OMEGA
