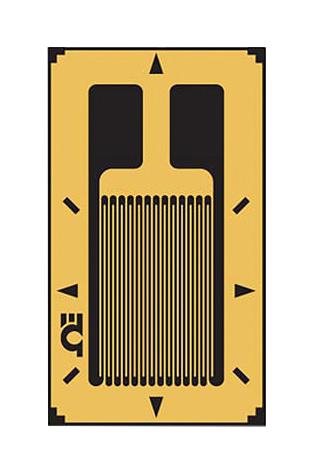

OMEGA SGD3350LY41 Linear Strain Gage
The SGD3350LY41 is a highly durable precision linear strain gage designed for static and dynamic stress measurement in various materials. Featuring a wide size range and flexible construction, it incorporates a sealed, etched constantan foil grid pattern on a polyimide carrier for excellent mechanical strength and flexibility. Suitable for stress concentration applications, it offers optional ribbon leads or solder pads, compatible with both steel and aluminum structures. Its rugged design ensures precision measurement in harsh environments with stable and reliable performance over broad temperature ranges.
OMEGA SGD3350LY41 Linear Strain Gage Specifications:
- Grid pattern pattern: Linear, long size, wide size options
- Carrier material: Polyimide film
- Active gage length: 350 mm
- Gage width: Variable (e.g., 9.5 mm, 13.0 mm, 22.7 mm)
- Grid length: Long
- Temperature range: Broad, suitable for harsh environments
- Connection options: Ribbon leads or solder pads
- Material options: Steel (ST) or Aluminum (AL)
- Nominal resistance: 350 Ohms
- Maximum bridge voltage: 40% of specified Vrms
- Mounting: Can be trimmed within 0.25 mm of foil grid
- Application: Static and dynamic stress analysis, experimental stress testing
- Sealing: Fully sealed constantan foil pattern
- Compatibility: Designed for stress concentration and high-gradient areas
- Performance: Rugged construction with high mechanical strength
- Order example: SGD-13/350-LY41
Buy the Omega SGD3350LY41 – Reliable Linear Strain Gage for Industrial Applications
Purchase the Omega SGD3350LY41 online today to ensure accurate static and dynamic stress measurement in various materials. Featuring a highly durable sealed design on a flexible polyimide carrier, it is suitable for stress analysis in harsh environments. With options for ribbon leads or solder pads, it can be easily mounted and trimmed for specific applications. Ideal for stress concentration and experimental stress analysis, this strain gage provides stable, reliable performance for engineering and manufacturing needs. Buy now for dependable stress testing results.
Get Omega SGD3350LY41 today—built for precision and long-lasting durability in stress measurement projects.
Frequently Asked Questions
Where can I buy OMEGA SGD3350LY41?
You can click on the BUY or RFQ button to purchase SGD3350LY41 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part SGD3350LY41?
You can download the SGD3350LY41 datasheet or visit the OMEGA website for support.
Who is the manufacturer of SGD3350LY41?
OMEGA
