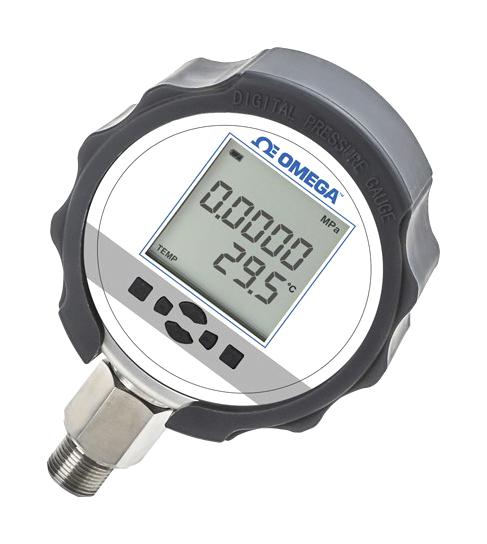

OMEGA DPG210500A Digital Pressure Gauge
The digital pressure gauge offers high precision measurements with a large LCD display, supporting multiple units like MPa, psi, and bar. It features real-time pressure, temperature display, and records maximum and minimum pressure values. Powered by three AA batteries or via USB, it provides over 3600 hours of service life. The device ensures stability, shock resistance, and easy unit switching, suitable for industrial pressure monitoring and calibration tasks. User-friendly controls allow zero clearing, unit switching, and backlight operation. Ideal for precise, stable pressure monitoring with advanced digital functions.
OMEGA DPG210500A Digital Pressure Gauge Specifications:
- Display: 55x55 mm LCD screen with main and auxiliary displays
- Power Supply: Three AA batteries or USB (5V, 0.15A)
- Battery Life: Over 3600 hours with ultralow power consumption
- Accuracy Classes: 0.2/0.1/0.05%FS
- Pressure Units: MPa, kPa, psi, bar, Pa, mBAR, mmHg, mH20, Torr, kgf/cm²
- Temperature Display: Celsius and Fahrenheit
- Measurement Range: Compatible with multiple pressure ranges
- Shock Resistance: Good stability under mechanical shocks
- Sampling Rate: Adjustable, 1–10, factory default 3
- Zero Clearing: Manual via long press, without pressure applied
- Auto Shutdown: Yes, after 10 minutes of inactivity
- Construction: Digital with high-precision ADC and microprocessor
- Dimensional Size: Approximately 105 mm width
- Connectivity: RS485 optional, Baud rates 4800/9600/19200
- Features: Max/Min pressure tracking, backlight, unit switching
Buy the Omega DPG210 – Reliable Digital Pressure Gauge for Industrial Applications
Purchase the Omega DPG210 digital pressure gauge online to experience reliable, high-precision pressure measurements suitable for industrial calibration and monitoring. This digital device features a large LCD screen, supports multiple pressure units, and displays real-time pressure, temperature, and maximum/minimum data. Powered by long-lasting batteries or USB, it ensures over 3600 hours of service life with excellent stability and shock resistance. Easy to operate with user-friendly controls for zero clearing, unit switching, and backlight, making it ideal for demanding industrial environments.
Get Omega DPG210 today—built for precision, stability, and long-lasting durability in industrial pressure monitoring.
Frequently Asked Questions
Where can I buy OMEGA DPG210500A?
You can click on the BUY or RFQ button to purchase DPG210500A from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part DPG210500A?
You can download the DPG210500A datasheet or visit the OMEGA website for support.
Who is the manufacturer of DPG210500A?
OMEGA
