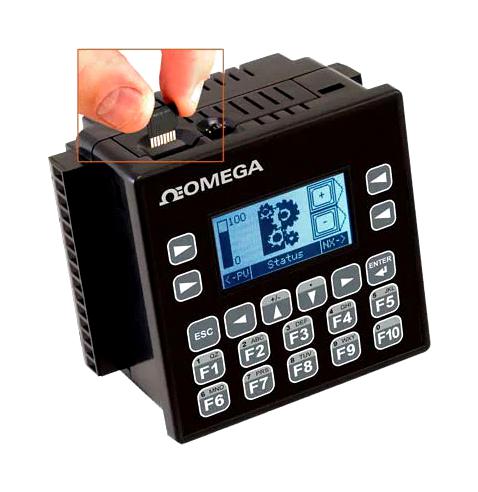

OMEGA HEXE105 Industrial Control Panel
This all-in-one programmable logic controller and operator interface combines visual display, control, and data management in a compact unit. It features a 160 x 128 sunlight-readable touchscreen and 256 KB of memory, supporting ladder logic programming via Cscape™. Equipped with built-in 1/0, removable terminal blocks, removable microSD card slot, and network options including Ethernet and serial ports, it supports high-speed counters, analog inputs, PWM outputs, and advanced temperature control with RTD and thermocouple support. Ideal for automation, packaging, water treatment, and industrial applications, this unit ensures reliable, flexible machine control.
OMEGA HEXE105 Industrial Control Panel Specifications:
- Display Technology: Backlit LCD; Sunlight-readable touchscreen
- Display Resolution: 160 x 128 pixels
- Memory: 256 KB application memory
- Controller Scan Rate: 1.2 ms/K
- Input Voltage Compatibility: 12/24 Vdc
- Digital Inputs: 12 (including 4 high-speed counters)
- Relay Outputs: 6 relays, 3 A each
- Analog Inputs: 2 universal (RTD, thermocouple, voltage, current)
- Analog Outputs: 2 channels, 0 to 10 Vdc or 4 to 20 mA
- Data Storage: MicroSD card slot, up to 2 GB capacity
- Networking: Ethernet (optional), serial ports (RS232/RS485), CAN bus
- Physical Dimensions: Height 143.6 mm, Width 186.1 mm, Depth 88 mm
- Weight: 0.751 kg
- Operating Temperature: 0 to 50°C
- Environmental Rating: NEMA 4X (IP66)
- Software: Cscape™ for programming and configuration
Buy the Omega Series XL Series Temperature Control: HEXE105
Enhance your automation systems with the Omega Series XL Series HEXE105, featuring a compact, all-in-one design with a high-resolution touchscreen, versatile I/O options, removable microSD storage, and network connectivity. Perfect for process control, machine monitoring, and temperature regulation, this robust controller supports high-speed counting, thermocouple, RTD inputs, and advanced programming via Cscape™ software. Its rugged construction, NEMA 4X rated enclosure, and flexible communication options make it ideal for a wide range of industrial and manufacturing applications. Purchase online today for reliable performance and seamless integration.
Order your Omega Series XL Series HEXE105 all-in-one controller today and ensure your automation projects benefit from reliable, integrated control and data management solutions.
Frequently Asked Questions
Where can I buy OMEGA HEXE105?
You can click on the BUY or RFQ button to purchase HEXE105 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part HEXE105?
You can download the HEXE105 datasheet or visit the OMEGA website for support.
Who is the manufacturer of HEXE105?
OMEGA
