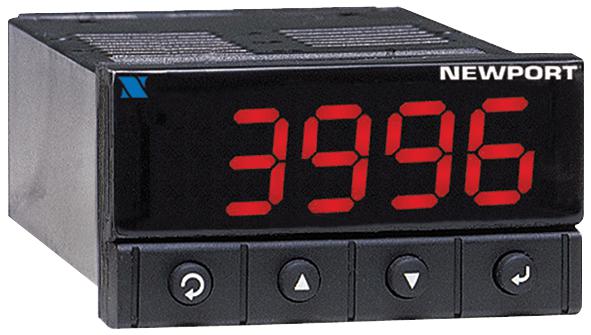

OMEGA DPI32AL Process Measurement Meter
The DPI32AL temperature and process meter with alarms offers versatile process measurement capabilities, supporting thermocouples, RTDs, voltage, and current inputs. It features two relay alarm outputs, a large multi-color programmable display, and remotely configurable alarm conditions. The device includes a built-in 24 Vdc excitation source, universal power supply, and front removable connectors, making it ideal for industrial temperature, flow, and pressure monitoring applications. Its easy setup, high accuracy, and multiple input options ensure reliable, precise control in demanding environments.
OMEGA DPI32AL Process Measurement Meter Specifications:
- Input Types: Thermocouple, RTD, analog voltage, analog current
- Accuracy: +0.5°C temperature; 0.03% rdg
- Temperature Stability: RTD 0.04°C/°C, Thermocouple 0.05°C/°C
- Process: 50 ppm/°C
- Reading Rate: 3 samples/sec
- Display: 4-digit LED, 21mm (0.83 inches), 10.2mm (0.40 inches) options
- Thermocouple Types: J, K, T, E, R, S, B, C, N, L (J DIN)
- RTD Input: 100/500/1000 Q Pt sensor, 2, 3, 4-wire
- Voltage Input: 0-100 mV, 0-1 V, 0-10 V
- Input Impedance: 10 MΩ for 100 mV, 1 MΩ for V inputs
- Current Input: 0-20 mA (5Ω shunt)
- Excitation Voltage: 24 Vdc @ 25 mA
- Alarm Relays: SPDT, 250 Vac or 30 Vdc @ 3A
- Operation: High/low, above/below, band, latch, normally open/closed
- Power Supply: 90-240 Vac +10%, 50-60 Hz or 110-300 Vdc
- Low Voltage Power: 12-36 Vdc or 24 Vac (external power required)
- Operating Temperature: 0 to 55°C
- Protection: NEMA 1/Type 1, NEMA 4X/IP65
- Dimensions: 48 H x 96 W x 127mm D (Type 1), 48 H x 48 W x 127mm D, 25.4 H x 48 W x 127mm D (NEMA 4X)
Buy the Omega DPI32AL – Reliable Process Measurement for Industrial Applications
Discover the Omega DPI32AL process measurement meter with alarms, offering versatile input options, dual relay outputs, and a large programmable display. Designed for industrial temperature, flow, and pressure monitoring, its easy setup, high accuracy, and robust construction ensure reliable operation. With built-in excitation, universal power supply, and front removable connectors, it's ideal for demanding environments requiring precise control. Purchase online now to enhance your process monitoring capabilities with this versatile, durable industrial equipment suited for temperature, pressure, and automation applications.
Get Omega DPI32AL today—built for precision, reliability, and flexible process control in demanding environments.
