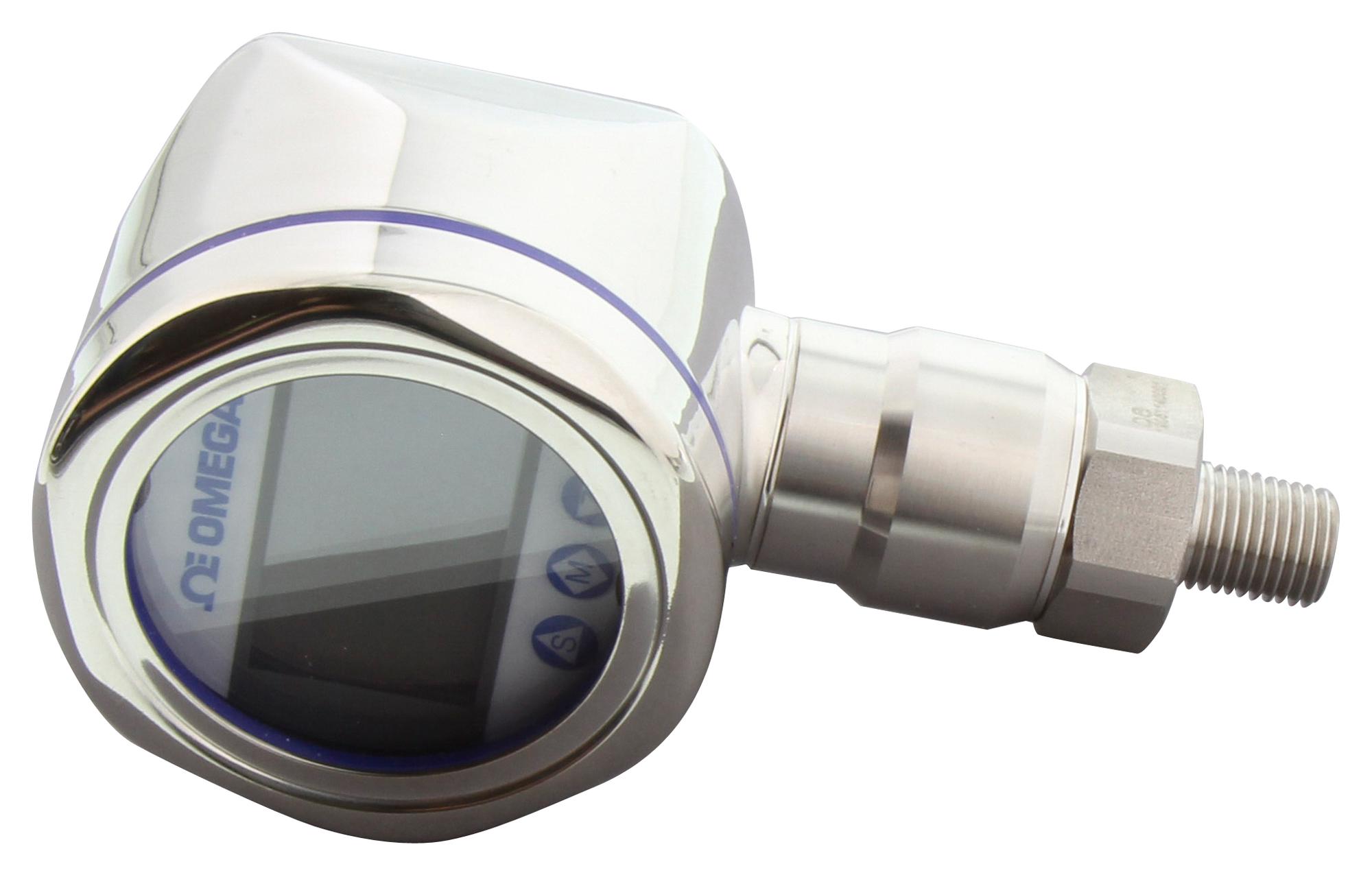

OMEGA PX300530KGI pressure transmitter
The OMEGA PX3005 is a durable, compact pressure transmitter with display, designed for industrial applications. Utilizing MEMs piezoresistive sensors and microprocessing, it offers accurate measurement from 1 psi to 15,000 psi, suitable for process automation, hydraulic systems, and tank monitoring. Its IP67 stainless-steel enclosure withstands washdown environments. Features include a 5-digit backlit LCD, configurable 4-20 mA output, multiple units, and re-range capability. Ideal for precise, reliable pressure measurement in demanding industrial settings with long-term stability and environmental resilience.
OMEGA PX300530KGI pressure transmitter Specifications:
- Accuracy: +/- 0.2% URL
- Environmental Rating: IP67
- Wetted Material: 316 stainless-steel
- Display: 5-digit backlit LCD, full process variable, units selectable
- Power Supply: 10.5 to 55VDC
- Media Temperature: -40°C to 120°C
- Operating Temperature: -20°C to 70°C
- Storage Temperature: -40°C to 85°C
- Response Time: 200 ms
- Sensor Type: MEMs piezoresistive
- Mounting: Compatible with any position, correction possible
- Electrical Connection: 4-pin M12 connector
- Dimensions: Compact size, suitable for industrial environments
- Protection: Enclosure rated IP67 for washdown resistance
- Output Signal: 4-20 mA, configurable, with re-ranging and tare functions
- Range: From 1 psi to 15,000 psi, including gauge and absolute types
- Long Term Stability: ±0.1% URL per year
- Material: Steel, corrosion resistant
- Voltage Range: 10.5-55 VDC
- Response Time: 200 ms based on silicone oil sensor
- Media Compatibility: Fluids and gases compatible with 316 SS and FKM
- Over Range Limit: Up to 15000 psi depending on model
Buy the Buy OMEGA Pressure Transmitter Part Number PX300530KGI Online
Experience the reliability and accuracy of the OMEGA PX3005 pressure transmitter, designed for industrial environments requiring precise pressure monitoring. With a rugged IP67 stainless-steel enclosure, it withstands harsh washdown settings while providing real-time pressure data via a clear backlit LCD. Its configurable 4-20 mA output, multiple measurement units, and re-ranging capabilities ensure versatility for process automation, hydraulic, and tank applications. Invest in this robust device for long-term stability, easy installation, and exceptional performance in demanding industrial processes.
Get OMEGA PX3005 today—built for precision and long-lasting durability.
Frequently Asked Questions
Where can I buy OMEGA PX300530KGI?
You can click on the BUY or RFQ button to purchase PX300530KGI from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part PX300530KGI?
You can download the PX300530KGI datasheet or visit the OMEGA website for support.
Who is the manufacturer of PX300530KGI?
OMEGA
