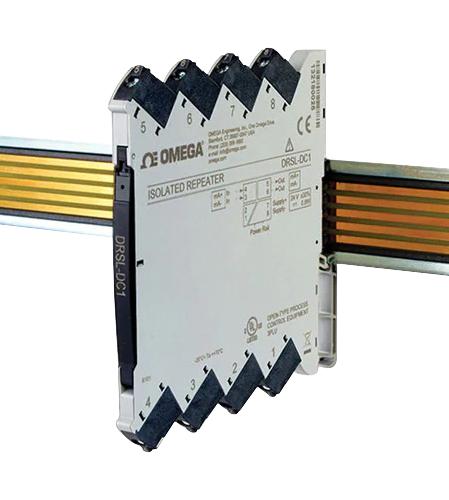

OMEGA DRSLDC1 Signal Isolator
The DRSL-DC1 is an isolated DIN rail signal repeater designed for galvanic isolation of current signals to SCADA systems and PLCs. It features 1:1 current signal conversion, surge suppression, and protection from transients and noise. With a compact slimline housing only 6 mm wide, it offers high accuracy of <0.05% span and fast response times under 7 ms. Operating over -25 to 70°C, it provides safe isolation between input, output, and supply, making it ideal for industrial automation and control applications.
OMEGA DRSLDC1 Signal Isolator Specifications:
- Measurement Range: 0 to 20.5 mA
- Functional Range: 0 to 23 mA
- Input Voltage Drop: <1.5 Vdc
- Signal Range Output: 0 to 20.5 mA
- Load: 23 mA/600 Ω max
- Load Stability: <0.01 % of span
- Current Limit: <28 mA
- Supply Voltage: 16.8 to 31.2 Vdc
- Power Consumption: 0.8 W max
- Isolation Voltage (Test): 2.5 kVac
- Working Isolation Voltage: 300 Vac
- Response Time: <7 ms
- Accuracy: <+0.05 % of span
- Temperature Range: -25 to 70°C
- Dimensions: 113 H x 6.1 W x 115 mm D
- Weight: approx. 70 g
- Protection Degree: IP20
- DIN Rail Type: 35 mm (EN 60715)
- Wire Size: 0.13 - 2.5 mm² / AWG 26 - 12
- Operating Humidity: 0 to 95% RH, non-condensing
- Screw Terminal Torque: 0.5 Nm
Buy the Buy Artin Signal Condition Part Number DRSLDC1 Online
Purchase the Artin DRSL-DC1 signal isolator online today to ensure high-precision galvanic isolation of current signals. This DIN rail mounted repeater offers fast response times under 7 ms, high accuracy of <0.05%, and robust noise suppression. Its slimline housing only 6 mm wide makes it suitable for tight spaces, providing protection against transients and ground loops. Compatible with industrial automation systems, the DRSL-DC1 operates over a temperature range from -25 to 70°C, making it a dependable choice for consistent, noise-free signal transmission.
Order your Artin Signal Condition DRSL-DC1 today and enhance your industrial automation system with reliable current signal isolation and conversion.
Frequently Asked Questions
Where can I buy OMEGA DRSLDC1?
You can click on the BUY or RFQ button to purchase DRSLDC1 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part DRSLDC1?
You can download the DRSLDC1 datasheet or visit the OMEGA website for support.
Who is the manufacturer of DRSLDC1?
OMEGA
