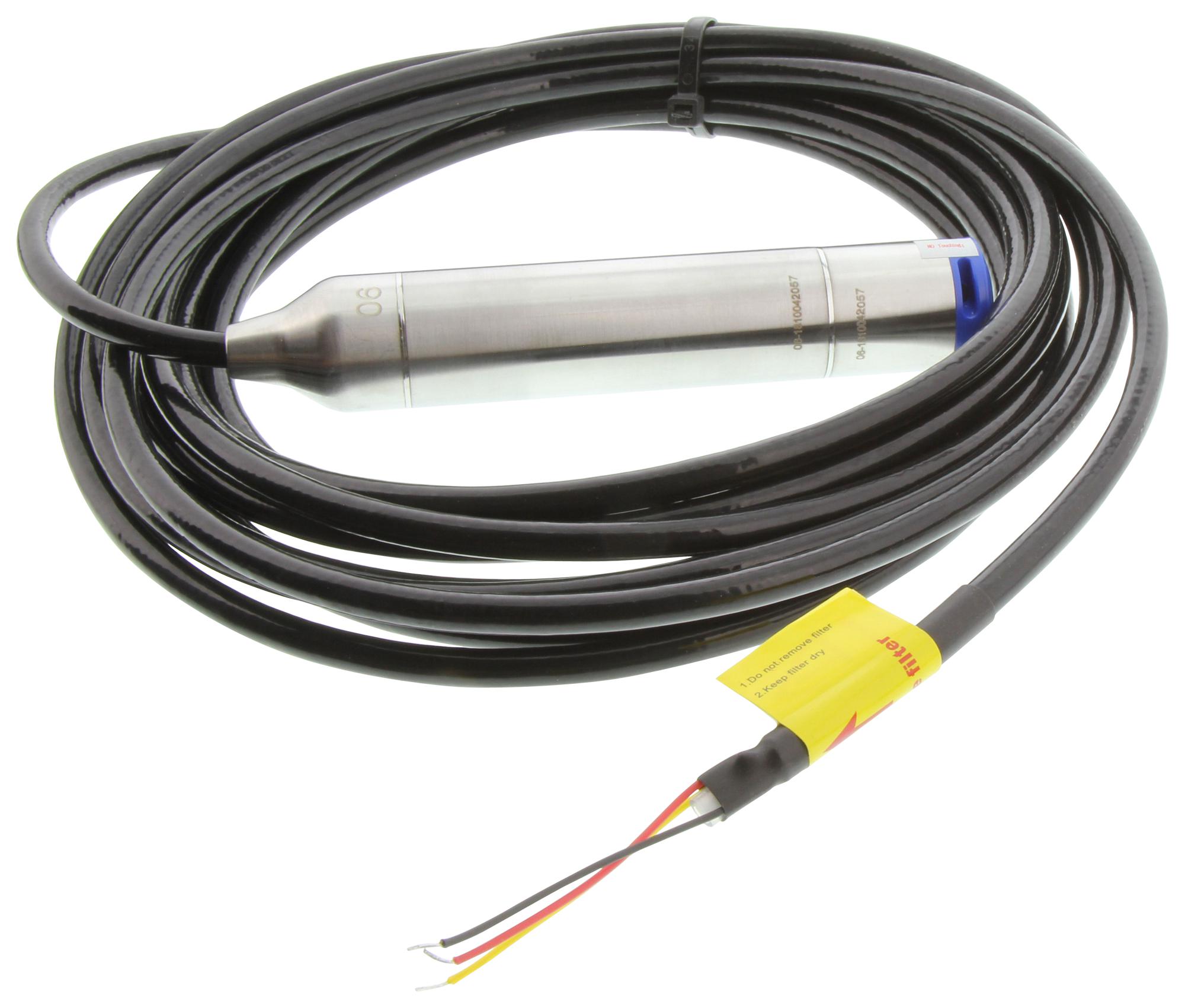

OMEGA PX633A1003GI Submersible Level Transmitter
The PX633 submersible level transmitter offers high precision measurement for demanding applications, utilizing advanced microprocessor technology for linear and temperature error compensation. Its rugged stainless steel body features full potting, dual seals, and an inverted cone seal for enhanced durability. Designed for complete submergibility and reliability, it includes transient voltage protection and a unique cable seal system, making it ideal for high-demand level measurement in turbulent or harsh environments. Its high static accuracy, long-term stability, and temperature compensation ensure consistent, precise readings in challenging conditions.
OMEGA PX633A1003GI Submersible Level Transmitter Specifications:
- Accuracy: 0.01% FS (PX633A1), 0.25% FS (PX633A2), 0.50% FS (PX633A5)
- Long Term Stability: +0.2% FS per year
- Supply Voltage: 10.5 to 55VDC
- Output Signal: 4 to 20mA DC
- Protection Class: IP68
- Operating Temperature: -10 to 70°C
- Storage Temperature: -30 to 80°C
- Material: Stainless steel
- Fill Fluid: Silicon oil
- Electrical Connection: PUR cable, diameter approximately 7.7mm
- Maximum Transmission Distance: < 1000m
Buy the OMEGA Series Submersible Pressure Transmitter: PX633A1003GI
Experience reliable and precise level measurement with the OMEGA PX633 series submersible transmitter. Featuring advanced microprocessor technology, corrosion-resistant stainless steel construction, and comprehensive error compensation, it ensures consistent performance under demanding conditions. Designed for complete submersion with IP68 protection, it includes surge and transient voltage protection, extended cable life, and long-term stability. Ideal for turbulent environments, this transmitter guarantees high accuracy readings and durability, providing you with a trusted solution for demanding industrial and water level applications.
Get OMEGA PX633A1003GI today—built for high accuracy and long-lasting durability in demanding level measurement applications.
Frequently Asked Questions
Where can I buy OMEGA PX633A1003GI?
You can click on the BUY or RFQ button to purchase PX633A1003GI from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part PX633A1003GI?
You can download the PX633A1003GI datasheet or visit the OMEGA website for support.
Who is the manufacturer of PX633A1003GI?
OMEGA
