OMEGA 12TX24SPP multipair extension cable

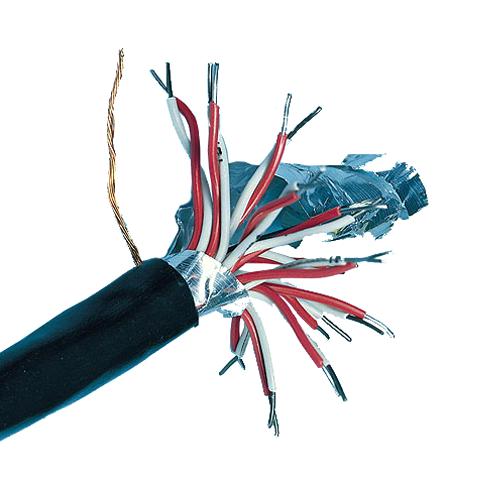

This multipair extension cable features twisted pairs individually wrapped with polyvinyl jackets, polyester film tape, and an aluminum-backed shield for electro-static protection. It includes a stranded tinned-copper drain wire for grounding and an additional polyvinyl-stranded copper wire for circuit completion or grounding. The cable’s outer jacket is approximately 1.1 mm thick, withstands temperatures up to 105°C, and is color-coded for easy identification. Custom options are available, including higher-temperature insulation and special designs for industrial and communication applications.
OMEGA 12TX24SPP multipair extension cable Specifications:
- Jacket Thickness: 1.1 mm (0.045 inches)
- Insulation Temperature Rating: Up to 105°C (221°F)
- Conductor Material: Tinned-copper, stranded
- Shielding: Aluminum-backed polyester film/tape
- Pair Configuration: Individually twisted and color-coded
- Additional Ground: Polyvinyl-clad stranded copper wire
- Temperature Range: -55°C to +105°C
- Minimum Bending Radius: 6 times overall diameter for 4 pair, 10 for 8 pair, 14 for over 8 pair
- Outer Jacket Material: Polyvinyl
- Optional Custom Designs: FEP insulated, overbraided, or 2-pair configurations
- Standard Length Minimum: 7.5 meters (25 feet)
- Applied Industry: Industrial automation, control systems, communication lines
Buy the Omega Multipair Extension Cable – Reliable Industrial Communication Solutions
Order the high-quality Omega multipair extension cable online today to ensure reliable signal transmission and robust grounding for industrial automation, control, and communication systems. Designed with twisted pairs, shielding, and durable outer jackets, these cables meet the highest standards for temperature resistance up to 105°C and easy identification through color coding. Custom configurations like higher temperature insulation or specialized overbraided designs are available. Purchase now and benefit from quick delivery, competitive pricing, and proven durability—perfect for demanding industrial environments and professional installations.
Get Omega multipair extension cable today—built for industrial communication, signal transmission, and long-lasting durability.
