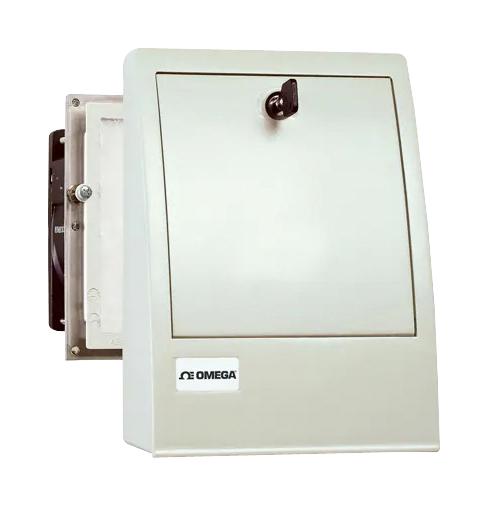

OMEGA FF01821002 Outdoor Filter Fan
This outdoor filter fan is designed for use in outdoor enclosures, efficiently dissipating heat generated during operation. It features a lockable, weatherproof hood with a fine filter mat that filters 98% of particles larger than 10 micrometers, maintaining NEMA 4 (IP55) protection. The impact-resistant plastic casing, UV-resistant and weatherproof, ensures durability in harsh environments. It includes an axial fan with a ball bearing for long operational life, a mounting frame with adhesive and optional screws, and is suitable for cooling electrical and electronic enclosures in outdoor settings with minimal noise and power consumption.
OMEGA FF01821002 Outdoor Filter Fan Specifications:
- Filter Mat: Fine grade 360 g/m², filtering degree 98% for particles >10 µm, F5 (EN 779)
- Air Flow: 11.8 cfm (20 m³/h)
- Current Consumption: 180 mA
- Power Consumption: 15 W
- Noise Level at 10 m: 40 dB (A)
- Mounting Depth: 62 mm (2.4 inches)
- Enclosure Cut-Out: 125 x 125 mm (4.9 x 4.9 inches)
- Weight: Approx 1.2 kg (2.6 lbs)
- Protection: NEMA 4 (IP55)
- Fan Type: Axial, ball bearing, aluminum frame, plastic impeller UL94V-0, life min 50,000 hrs at 25°C (77°F), ambient temp -30 to 70°C (-22 to 158°F)
- Housing: Plastic, UL94V-0, color light gray, temperature range -0.5 to 70°C
- Mounting Frame: Double-sided adhesive tape, screw compatible
- Filter Material: Synthetic fiber, temperature resistant to 100°C (212°F), moisture resistant to 100% RH, washable
- Mounting Frame Size: 165 x 62 mm
- Dimensions: 142 mm x 185 mm (5.6 in x 7.3 in)
Buy the Mitsubishi Series FF: Outdoor Filter Fan FF01821002
Experience reliable cooling with this weatherproof outdoor filter fan, ideal for outdoor enclosures. Its impact-resistant plastic case, fine filter mat, and NEMA 4 protection ensure durability in harsh environments. The filter efficiently captures 98% of particles larger than 10 micrometers, maintaining equipment safety and longevity. Easy to install with a locking hood and mounting frame, it operates quietly at just 40 dB and consumes only 15 W. Improve thermal management outdoors—order your Mitsubishi outdoor filter fan today for long-lasting, efficient performance in challenging conditions.
Order your Mitsubishi Series FF outdoor filter fan FF01821002 today and enhance your enclosure cooling with dependable weatherproof performance.
