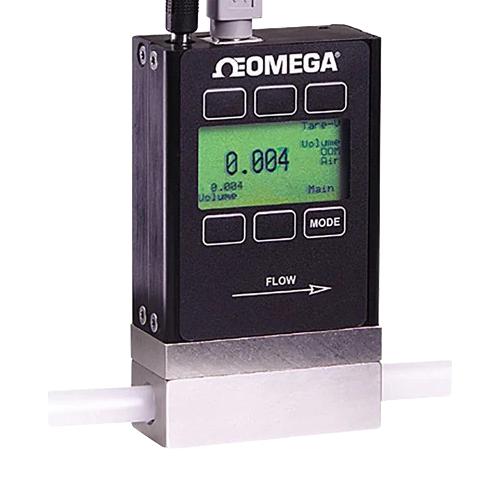

OMEGA FMA1605AI Gas Flow Meter
The FMA-1600A series mass and volumetric flow meters by Omega utilize differential pressure within a laminar flow element to accurately measure gas flow rates. The device features a laminar flow element (LFE) that ensures a streamlined flow of the gas, allowing the Poiseuille equation to relate pressure drop to volumetric flow rate. Built-in temperature and pressure sensors adjust the readings to standard conditions. These flow meters support a maximum flow rate of 2 SLM, with 4 to 20mA output and RS232 communication capabilities. They connect via a 1/8 FNPT fitting and include 130+ gas calibration options for pure and mixed gases. Designed for ease of use, they require no warm-up time, no straight pipe runs, high turndown ratio of 200:1, and come with comprehensive accessories including power supply, operator manual, and NIST certificate.
OMEGA FMA1605AI Gas Flow Meter Specifications:
- Flow Range: Up to 2 SLM (Max 125% FS)
- Accuracy: ±0.8% of rdg + 0.2% FS
- Repeatability: ±0.2%
- Turndown Ratio: 200:1
- Response Time: 10 ms typical, field adjustable
- Output: 0 to 5 V, optional 4 to 20 mA
- Operating Temperature: -10 to 50°C (14 to 122°F)
- Max Pressure: 145 psig
- Power Supply: 7 to 30 Vdc
- Cable Connection: 8-pin mini DIN
- Wetted Parts: 302/303 SS, FKM, silicone RTV, glass filled PPS
- Calibration: 130+ gas options, accurate at ambient 25°C
- Dimensions: Varies per model, connection via FNPT or threaded fittings
- Special Features: Supports custom gas blends, no warm-up, no pipe straight runs, high precision, digital output, NIST cert.
Buy the Omega FMA-1600A – Reliable Gas Flow Meters for Industrial Applications
Order the Omega FMA-1600A series gas flow meter online today and experience precise flow measurement for clean gases. Featuring differential pressure technology and laminar flow elements, this device provides accurate mass and volumetric flow rates across various applications. It supports 130+ gas calibrations, includes RS232 and 4–20mA outputs, and requires no straight pipe runs or warm-up time. With a high turndown ratio of 200:1 and a range up to 2 SLM, this reliable flow meter is ideal for industrial, laboratory, and process automation environments. Buy now for superior accuracy and easy integration.
Get Omega FMA-1600A today—built for precision and long-lasting durability in gas flow measurement applications.
