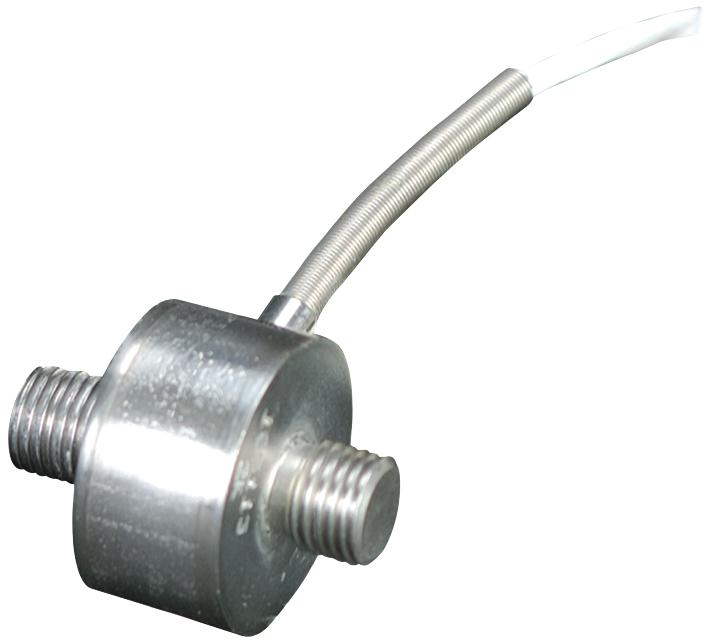

OMEGA LC202500 Miniature Force Sensor
Omega's LC202/LCM202 series miniature load cells are designed for testing stands and difficult locations, offering ranges from 50 to 10,000 pounds or 22 to 4537 kilograms. These all stainless steel, rugged load cells feature dual mounting studs for easy installation and a 5-point calibration for highly accurate measurements with 0.25% tolerance. They operate within -54 to 121°C, have a protection class of IP65, and provide reliable tension and compression force measurements, suitable for industrial and commercial applications requiring compact, durable force sensors.
OMEGA LC202500 Miniature Force Sensor Specifications:
- Excitation: 10 Vdc, 15 Vdc max
- Output: 2 mV/V nominal
- Accuracy: +0.25% FSO linearity, hysteresis, repeatability
- Calibration: 5-Point
- Zero Balance: +2% FSO
- Operating Temp Range: -54 to 121°C
- Compensated Temp Range: 16 to 71°C
- Zero Thermal Effect: 0.009% FSO/°C
- Span Thermal Effect: 0.009% FSO/°C
- Safe Overload: 150% of capacity
- Ultimate Overload: 300% of capacity
- Input Resistance: 360 Q minimum
- Output Resistance: 350 +10 Q
- Construction: Stainless steel
- Electrical Connection: 1.5 m 4-conductor shielded cable
- Protection Class: IP65
- Dimensions: 7.9 mm (0.31 in) diameter, length varies with range, max length of 97 mm (3.83 in)
Buy the Omega LC202– Reliable Load Cell for Industrial Applications
Purchase the Omega LC202500 miniature force sensor online now to ensure precise tension and compression measurement in industrial testing environments. Its rugged stainless steel construction, 5-point calibration, and IP65 protection make it perfect for demanding industrial and commercial applications. With a capacity of 500 pounds and an accuracy of 0.25%, this load cell is suitable for test stands, installation in tight spaces, and long-term use. Easy to install with dual studs, this compact sensor guarantees reliable force measurements in harsh conditions, available now for quick delivery.
Get Omega LC202500 today—built for precision and long-lasting durability, ideal for demanding industrial force measurement tasks.
Frequently Asked Questions
Where can I buy OMEGA LC202500?
You can click on the BUY or RFQ button to purchase LC202500 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part LC202500?
You can download the LC202500 datasheet or visit the OMEGA website for support.
Who is the manufacturer of LC202500?
OMEGA
