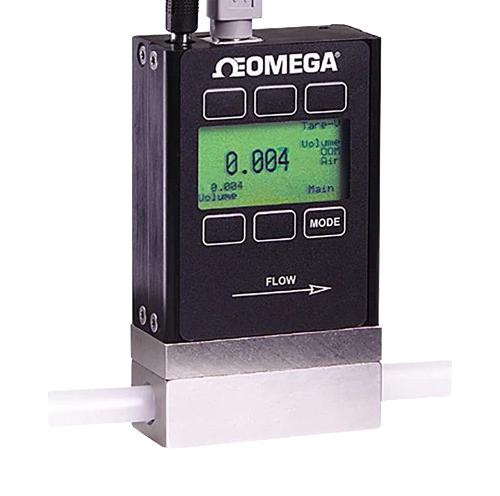

OMEGA FMA1610A Gas Flow Meter
The FMA-1600A series mass and volumetric flow meters by Omega utilize differential pressure measurements within a laminar flow element to determine the mass flow rate of gases. The device incorporates an internal laminar flow element that ensures streamlined flow, allowing the pressure drop across a fixed length to be proportional to the volumetric flow rate based on the Poiseuille equation. Separate temperature and pressure sensors adjust the readings to standard conditions for accuracy. Features include a maximum flow rate of 100 SLPM, an accuracy of ±(0.8% of reading + 0.2% of full scale), RS232 communication interface, 1/4 inch FNPT connection, and a gas calibration library with over 130 gases, including pure and mixed types. It has a gas meter with display, requires no warm-up time, and does not need straight pipe sections. The device offers a 200:1 turndown ratio and comes with a 24V DC power supply, a 1.8-meter cable, an 8-pin mini DIN connector, operator's manual, and NIST calibration certificate.
OMEGA FMA1610A Gas Flow Meter Specifications:
- Maximum flow rate: 100 SLPM
- Accuracy: ±(0.8% of reading + 0.2% FS)
- Repeatability: ±0.2%
- Turndown Ratio: 200:1
- Response Time: 10 ms default, field adjustable
- Output: 0 to 5 V, optional 4 to 20 mA
- Operating Temperature: -10 to 50°C (14 to 122°F)
- Pressure: Max 145 psig
- Humidity Range: 0 to 100% non-condensing
- Supply voltage: 7 to 30 Vdc
- Dimensions: Various port sizes from 0.5 SCCM to 3000 SLM with corresponding port threads and sizes
- Wetted Parts: Stainless steel, FKM, silicone RTV, glass-reinforced PPS, epoxy, aluminum, gold, brass, silicon, and glass
Buy the Omega Series FMA Gas Flow Meter: FMA-1610A
Experience accurate and reliable gas flow measurement with the Omega FMA-1600A series. Featuring differential pressure technology, it provides fast response times and a turndown ratio of 200:1. Ideal for clean gases, it requires no straight pipe sections and offers features like RS232 communication, calibration for over 130 gases, and a compact design. Suitable for various applications from lab to industrial environments, this flow meter ensures precise data logging and easy operation, making it an essential tool for professionals needing dependable flow control.
Get Omega FMA-1610A today—built for precision and long-lasting durability in gas flow measurement.
