OMEGA HTMG1CU614SC250 High Temperature Heater Wire

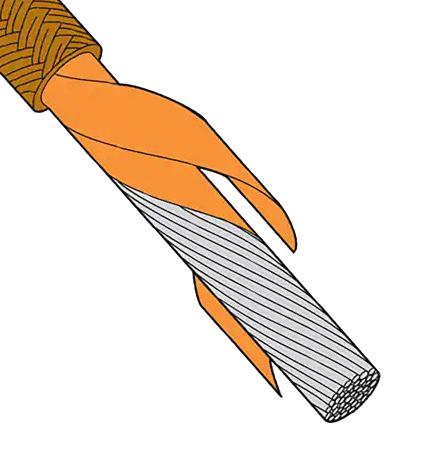

The HTMG Series Mica-Glass Insulated Hook-Up Wire is engineered for high-temperature industrial applications, including heaters, furnaces, and kilns, with a temperature rating up to 450°C (842°F). Crafted with stranded 27% nickel-coated copper conductors and treated glass braid insulation, this high-quality wire ensures durability and reliable electrical performance. Certified by CSA, NRTL, and UL, it is available in various lengths, and sizes, and features a natural tan color. Designed for heat-treating and industrial equipment, it offers excellent thermal stability and electrical integrity at elevated temperatures.
OMEGA HTMG1CU614SC250 High Temperature Heater Wire Specifications:
- Conductor Material: Nickel-Coated Copper
- Conductor Type: Stranded, 27% nickel-plated
- Temperature Rating: Up to 450°C (842°F)
- Insulation: Treated Glass Braid with mica tape
- Voltage Rating: 300 V and 600 V options
- Gauges Available: 8, 10, 12, 14, 16, 18, 20, 22 AWG
- Nominal Outer Diameter: Ranges from 2.0 mm (0.08 inch) to 6.1 mm (0.26 inch)
- Weight: 2.5 kg (5.5 lb) to 34.2 kg (75.5 lb) per 300 meters
- Color: Natural (tan)
- Certifications: CSA Certified, NRTL Listed, UL Listed
- Applications: Industrial heaters, kilns, heat treating equipment, appliances
- Availability: Sold by the foot, in lengths from 50 to 499 ft.
- Model Number Examples: HTMG-1CU-622S/C, HTMG-1CU-314S/C, HTMG-1CU-610S/C
Buy the Buy Ultra High Temperature Heater Hook-Up Wire Part Number HTMG1CU614SC250 Online
Order high-quality, mica-glass insulated high-temperature heater wire online today. Perfect for industrial heating equipment requiring maximum thermal stability and electrical performance up to 450°C. Available in multiple gauges and lengths, this certified wire is ideal for heat treating furnaces, kilns, and appliances, offering durability and safety in demanding applications. Shop now to experience fast delivery, competitive pricing, and the assurance of certified industrial-grade wiring designed for reliability and long-term performance.
Buy Ultra High Temperature Heater Hook-Up Wire Part Number HTMG1CU614SC250 now and ensure reliable high-temperature performance for your industrial heating needs.
