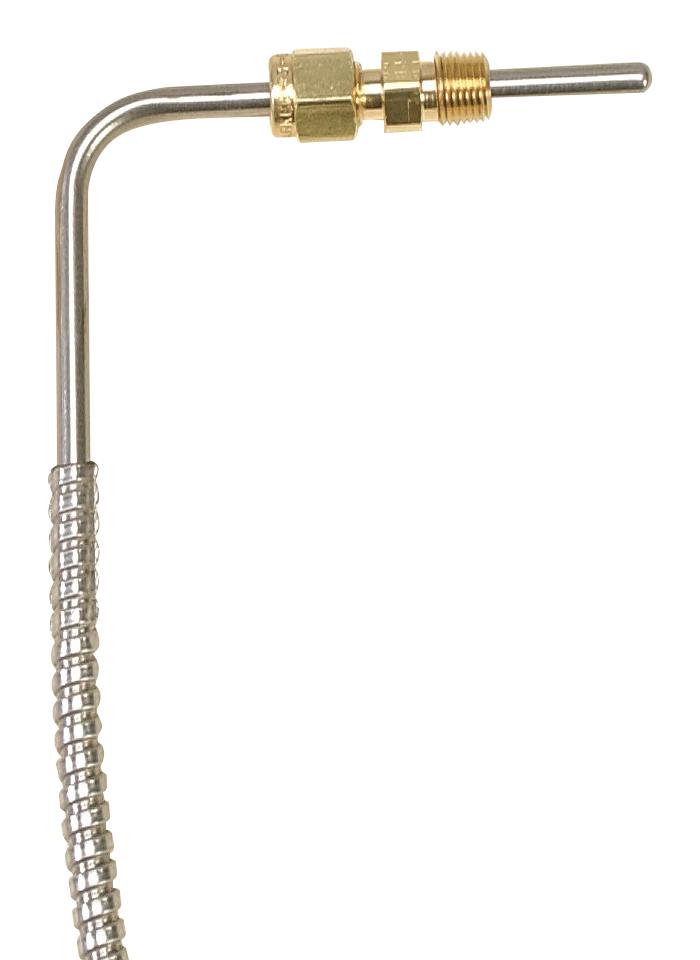

OMEGA CF090RTD63601 RTD Temperature Probe
These RTD probes are designed for precise temperature measurement in plastic processing machinery, featuring DIN Platinum 100 Q Class "A" thin film elements and stainless steel sheaths. They accommodate temperatures up to 260°C (500°F) continuously, with optional ratings up to 480°C (900°F). The probes come with bayonet locking caps or compression fittings, 1.5 m (60") flexible cables, and either spade lugs or OTP connectors for versatile terminations. Suitable for industrial settings, they ensure accurate, reliable sensing in harsh environments.
OMEGA CF090RTD63601 RTD Temperature Probe Specifications:
- Temperature Range: to 260°C (500°F), optional up to 480°C (900°F)
- Sensor Element: DIN Platinum 100 Q Class "A" Thin Film
- Diameter: 4.75 mm (0.187 inches)
- Sheath Material: 304 Stainless Steel
- Cable: 1.5 m (60 inches) flexible cable, PFA insulated, with BX armor
- Termination: Spade lugs or OTP connector
- Fittings: Bayonet locking caps, compression fittings, threaded options available
- Model Variations: straight or 90° bend, different cable lengths and terminations
- Thread Sizes: %-27 NPT or other threaded adaptors available
- Order Examples: BT-090-RTD-3 1/2-60-1, CF-000-RTD-2-60-1
- Suitable for high-temperature industrial environments with reliable, precise measurements
Buy the Omega RTD Probes – Reliable Temperature Sensors for Industrial Applications
Enhance your industrial temperature monitoring with high-precision RTD temperature probes, designed for plastic processing machinery. Featuring DIN platinum elements, stainless steel sheaths, and flexible cables with various termination options, these probes ensure accuracy and durability in demanding environments. Available with bayonet or compression fittings, and different bend configurations, they provide reliable measurements up to 260°C continuously, with optional ratings up to 480°C. Easily order online for quick delivery and elevate your industrial temperature sensing performance.
Order your Omega RTD probes with Bayonet Fittings today and enhance your industrial temperature measurements with dependable and precise sensing solutions.
Frequently Asked Questions
Where can I buy OMEGA CF090RTD63601?
You can click on the BUY or RFQ button to purchase CF090RTD63601 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part CF090RTD63601?
You can download the CF090RTD63601 datasheet or visit the OMEGA website for support.
Who is the manufacturer of CF090RTD63601?
OMEGA
