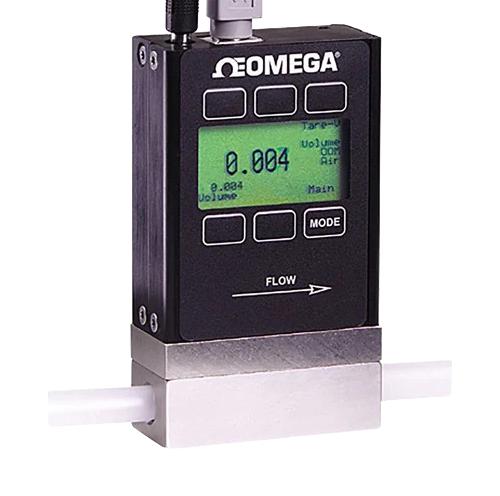

OMEGA FMA1611A Gas Flow Meter
The FMA-1600A Series mass and volumetric flow meters utilize differential pressure within a laminar flow element to precisely measure gas flow rates. They feature an internal laminar device that ensures streamlined flow, enabling the Poiseuille equation to relate pressure drops to volumetric flow, accounting for gas viscosity. Equipped with independent temperature and pressure sensors, these meters adjust readings to standard conditions with accuracy of ±(0.8% of reading + 0.2% FS). They support over 130 gases, provide RS232 communication, have a 1/2 inch FNPT port, and boast a turndown ratio of 200:1, no warm-up time, and simple installation without straight pipe sections. Supplied with power supply, cabling, manual, and NIST calibration.
OMEGA FMA1611A Gas Flow Meter Specifications:
- Flow Range: Up to 250 SLM (standard liters per minute)
- Accuracy: ±(0.8% of reading + 0.2% FS)
- Repeatability: 0.2%
- Turndown Ratio: 200:1
- Response Time: 10 ms (default), adjustable via RS232
- Output: 0-5 V standard, optional 4-20 mA
- Operating Temperature: -10 to 50°C (14 to 122°F)
- Maximum Pressure: 145 psig
- Humidity Range: 0 to 100% non-condensing
- Supply Voltage: 7-30 VDC (15-30 VDC for 4-20 mA output)
- Wetted Parts: 302 and 303 stainless steel, FKM, silicone RTV, glass-reinforced PPS
- Port Connection: 1/2 inch FNPT
- Calibration: Supports 130+ gases, calibration at ambient 25°C
- Response Time: 10 ms typical, response adjustable via RS232
- Response to 63.2% step change: default, field-adjustable
- Venting: To atmosphere, if needed
Buy the Omega Series FMA 1600A Gas Flow Meter: FMA1611A
Purchase your Omega Series FMA-1600A gas flow meter online today and enjoy precise mass and volumetric flow measurement capabilities. This device offers high accuracy of ±0.8% of reading plus 0.2% FS, supporting over 130 gases including pure and mixed types. Its digital interface with RS232 allows easy data logging, while the no-straight-pipe setup simplifies installation. With a turndown ratio of 200:1, quick response time, and robust materials, this flow meter is ideal for laboratory, industrial, and research applications. Include a power supply, manual, and calibration certificate for comprehensive performance.
Order your Omega Series FMA-1600A gas flow meter today and ensure accurate, reliable measurements for your industrial applications with effortless connectivity and calibration.
Frequently Asked Questions
Where can I buy OMEGA FMA1611A?
You can click on the BUY or RFQ button to purchase FMA1611A from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part FMA1611A?
You can download the FMA1611A datasheet or visit the OMEGA website for support.
Who is the manufacturer of FMA1611A?
OMEGA
