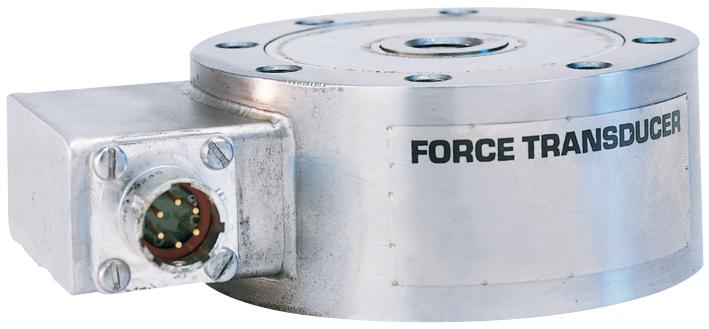

OMEGA LCHD50K Load Cell
The LCHD series LCHD-50K load cell by Omega is a compact pancake-style sensor designed for tension and compression measurements. Crafted entirely from stainless steel, it ensures durability and stability in harsh environments. It features high linearity, low hysteresis, and repeatability with a 50,000 lb capacity. The load cell employs through-hole mounting, threaded center shaft, and welded stabilizing diaphragms to minimize off-center effects. Compatible with digital meters, it operates at 10V DC excitation, provides a low output of 3 mV/V, and includes internal calibration and mating connectors for precise force sensing applications.
OMEGA LCHD50K Load Cell Specifications:
- Capacity: 50,000 lb (22,686 kgf)
- Material: Stainless steel
- Output (FSO): 3 mV/V
- Excitation Voltage: 10 Vdc (up to 15 V)
- Linearity: 0.20% FSO at 25 lb/10 kgf
- Hysteresis: 0.10% FSO at 25 lb/10 kgf
- Repeatability: 0.1% FSO at 25 lb/10 kgf
- Zero Balance: +1% of FSO
- Operating Temp Range: -54 to 121°C (-65 to 250°F)
- Compensated Temp Range: 16 to 71°C (60 to 160°F)
- Dimensions: Standard pancake style, through-hole mounting, threaded center shaft, welded stabilizing diaphragms
- Overload Capacity: 150% of rated capacity
- Connector: Mating connector included
Buy the Buy Omega Load Cell Part Number LCHD50K Online
Purchase the Omega LCHD50K load cell online today and enjoy a high-performance, stainless steel pancake-style sensor with 50,000 lb capacity. Designed for tension and compression, it features excellent linearity, low hysteresis, and repeatability. With internal calibration, compatible connectors, and a robust construction, this load cell ensures reliable, long-term operation across severe environmental conditions. Ideal for force measurement in manufacturing, testing, and industrial applications, it guarantees accurate results and durable performance in critical measurement tasks.
Buy Omega LCHD50K load cell now and experience unmatched reliability and precise force measurement in demanding environments.
Frequently Asked Questions
Where can I buy OMEGA LCHD50K?
You can click on the BUY or RFQ button to purchase LCHD50K from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part LCHD50K?
You can download the LCHD50K datasheet or visit the OMEGA website for support.
Who is the manufacturer of LCHD50K?
OMEGA
