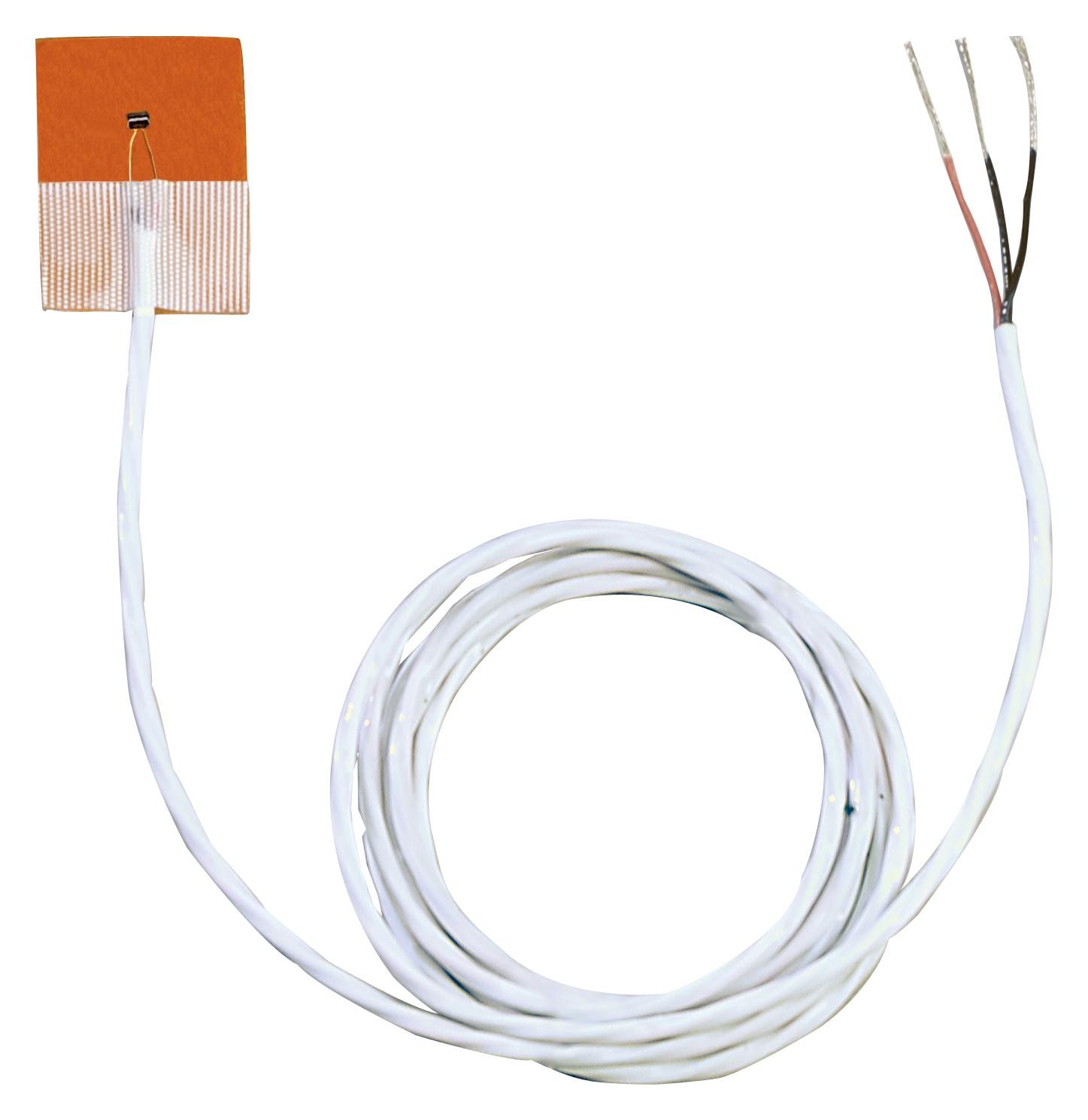

OMEGA SA1RTD Surface-Mount RTD Sensor
The SA1-RTD surface-mount temperature sensor provides Class A accuracy with a thin-film platinum RTD element, ideal for critical temperature monitoring on flat or curved surfaces. It features a self-adhesive backing for easy application or permanent mounting with OMEGABOND cement. Rated for continuous operation up to 260°C (500°F) and short-term use at 290°C (554°F), it offers fast response times and stable readings. The sensor includes flexible lead options like 3- or 4-wire configurations, with configurations for high-noise environments through stainless steel overbraid customization. Suitable for electronic, industrial, and structural temperature measurements.
OMEGA SA1RTD Surface-Mount RTD Sensor Specifications:
- Minimum/Maximum Temperature: -73°C to 260°C continuous, 290°C short-term
- Sensing Element: 100 Q at 0°C, temperature coefficient of 0.00385 2/Q/°C
- Accuracy: +0.06Q at 0°C (DIN Class A)
- Stability: Less than 0.2°C drift/year
- Response Time: Less than 0.9 s in water, less than 2 s on hot plate
- Self-Heating Effect: 2.5 mW/°C
- Lead Wire: 1 m (40 inch), 26 AWG stranded nickel-plated copper, PFA insulated
- Construction: Thin-film platinum RTD, 2 x 2 x 0.8 mm, 25 x 19 mm size
- Mounting Options: Self-adhesive or OMEGABOND cement
- Additional Features: Stainless steel overbraid option for noisy environments
Buy the OMEGA Series SA1 RTD: Surface-Mount Temperature Sensor
Purchase the OMEGA Series SA1 RTD surface-mount temperature sensor online today for precise, reliable temperature measurements in electronic, industrial, and structural environments. Easy to install with self-adhesive backing or permanent cement mounting, it offers Class A accuracy and a broad temperature range up to 260°C. The sensor's fast response time, stable readings, and customizable lead configurations make it ideal for critical monitoring tasks. Ensure consistent performance in demanding environments—buy now to upgrade your temperature measurement solutions with OMEGA quality and service.
Order your OMEGA Series SA1 RTD temperature sensor today and ensure reliable, high-accuracy temperature monitoring for your critical applications.
Frequently Asked Questions
Where can I buy OMEGA SA1RTD?
You can click on the BUY or RFQ button to purchase SA1RTD from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part SA1RTD?
You can download the SA1RTD datasheet or visit the OMEGA website for support.
Who is the manufacturer of SA1RTD?
OMEGA
