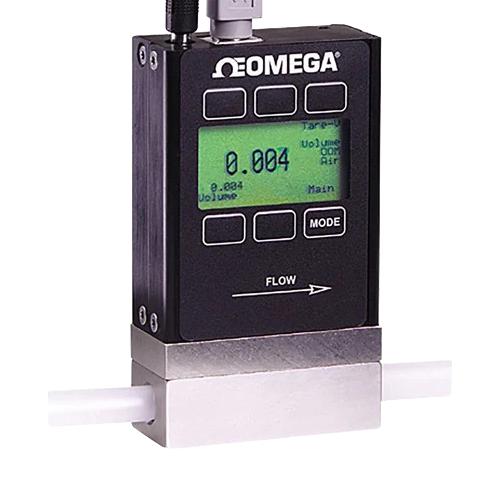

OMEGA FMA1613A Gas Flow Meter
The FMA-1600A series mass and volumetric flow meters by Omega operate on differential pressure within a laminar flow field, accurately measuring gas flow rates. Utilizing an internal laminar flow element, the device determines volumetric flow based on pressure drop and gas viscosity, with temperature and pressure sensors correcting the readings. Featuring a maximum flow rate of 1000 SLM, an accuracy of ±0.8% of reading plus 0.2% FS, RS232 communication, a 3/4 inch FNPT connection, and compatibility with over 130 gas calibrations, these meters require no pipe straight runs, no warm-up time, and have a turndown ratio of 200:1. Accessories include power supply, cables, and calibration certificates, suitable for clean gases and various industrial applications.
OMEGA FMA1613A Gas Flow Meter Specifications:
- Maximum Flow Rate: 1000 SLM
- Accuracy: ±(0.8% of rdg + 0.2% FS)
- Repeatability: 0.2%
- Turndown Ratio: 200:1
- Response Time: 10 ms typical, adjustable
- Output: 0 to 5 V or 4 to 20 mA (optional)
- Operating Temperature: -10°C to 50°C (14°F to 122°F)
- Maximum Pressure: 145 psig
- Power Supply: 7 to 30 Vdc
- Cable Connection: 8-pin mini DIN
- Wetted Parts: Stainless Steel, FKM, silicone, glass-reinforced PPS
- Connections: 3/4 inch FNPT
- Includes NIST calibration certificate
- Compatible with 130+ gas calibrations, no warm-up, no straight pipe runs
Buy the Omega Series FMA-1600A Gas Flow Meter: FMA1613A
Order the Omega FMA-1613A gas flow meter online today and experience accurate mass and volumetric flow measurement for clean gases. This durable device offers high precision with ±0.8% of reading accuracy and quick response time. It features RS232 communication, a 3/4 inch FNPT connection, and is compatible with over 130 gas calibrations, including pure and mixed gases. No straight pipe runs or warm-up time are required, making installation straightforward. The device is ideal for industrial gas monitoring, process control, and laboratory applications, ensuring reliable performance in critical environments. Easy online purchase ensures quick delivery and excellent support.
Get Omega FMA-1613A today—built for precision and long-lasting durability in gas flow measurement.
