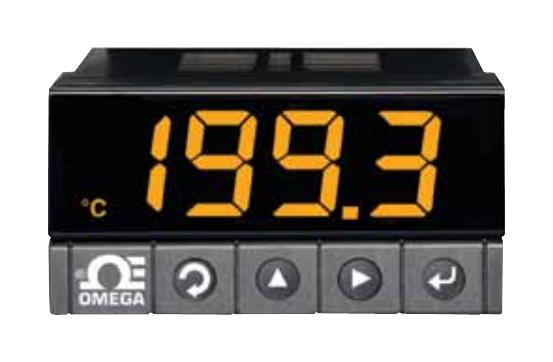

OMEGA CNI8AL Limit Controller
The CNi8AL limit controller offers flexible process monitoring with universal inputs for thermocouples, RTDs, voltages, and currents, featuring user-friendly multi-color displays, programmable alarms, and built-in excitation source. It supports various power options, including 90-240 Vac and 12-36 Vdc, with configurations for high/low limits, remote reset, and visual alarms. Its compact DIN size makes it ideal for industrial safety, temperature, and process control applications, providing reliable and scalable operation with adjustable sampling and display features for diverse industrial environments.
OMEGA CNI8AL Limit Controller Specifications:
- Input Types: Thermocouple, RTD, analog voltage, current
- Accuracy: +0.5°C temperature; 0.03% rdg
- Temperature Stability: RTD 0.04°C/°C; Thermocouple 0.05°C/°C
- Display: 4-digit 9-segment LED, 21 mm high
- Thermocouple Types: J, K, T, E, R, S, B, C, N, L (J DIN)
- RTD Input: 100/500/1000 Ω Pt sensors, 2-, 3-, 4-wire, 0.00385 or 0.00392 curve
- Voltage Input: 0-100 mV, 0-1 V, 0-10 VDC; Impedance: 10 MΩ at 100 mV, 1 MΩ at 1 V/10 V
- Current Input: 0-20 mA (5 Ω shunt), 24 VDC excitation at 25 mA
- Relay Output: SPDT, 250 Vac or 30 VDC @ 3A, configurable for high/low, band, latch, normally open/closed
- Power Supply: 90-240 Vac +10%, 50-400 Hz or 12-36 Vdc (low power option available)
- Operating Temperature: 0 to 55°C, 32 to 131°F; RH: 90% non-condensing
- Protection: NEMA 1 front bezel or NEMA 4X/IP65, DIN sizes 48 H x 96 W x 127 mm D and smaller
Buy the Omega CNI8AL – Reliable Limit Controller for Industrial Applications
Secure the Omega CNI8AL limit controller for your industrial temperature and process applications. Featuring universal inputs, programmable alarms, and a multi-color display, this device ensures precise monitoring and safety. Its scalable configuration, built-in excitation source, and versatile power options make it ideal for temperature, pressure, and flow control. Easy to install with DIN mounting, it supports high accuracy with fast sampling rates. Buy online now to enhance your process control with proven reliability and flexibility in various industrial environments.
Buy Omega CNI8AL now and experience unmatched reliability and performance in process monitoring and temperature control.
Frequently Asked Questions
Where can I buy OMEGA CNI8AL?
You can click on the BUY or RFQ button to purchase CNI8AL from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part CNI8AL?
You can download the CNI8AL datasheet or visit the OMEGA website for support.
Who is the manufacturer of CNI8AL?
OMEGA
