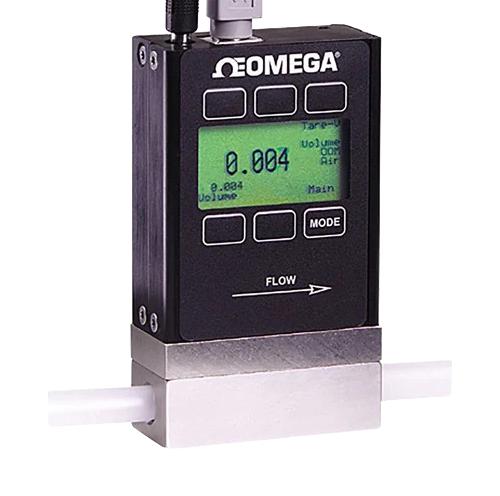

OMEGA FMA1617A Gas Flow Meter
The FMA-1600A series mass and volumetric flow meters operate based on differential pressure within a laminar flow field, enabling precise measurement of gas flow rates. Equipped with a laminar flow element, they use the Poiseuille equation to relate pressure drops to volumetric flow, with integrated temperature and pressure sensors to standardize measurements. Supporting a maximum flow of 100 SCCM and an accuracy of ±(0.8% of reading + 0.2% FS), they feature RS232 output, no need for straight pipe runs, and are calibration-ready for over 130 gases, making them ideal for applications requiring accurate gas flow monitoring.
OMEGA FMA1617A Gas Flow Meter Specifications:
- Max Flow Rate: 100 SCCM
- Accuracy: +-(0.8% of rdg + 0.2% FS)
- Response Time: 10 ms typical, field adjustable
- Output: 0 to 5 V or 4 to 20 mA (optional)
- Operating Temperature: -10 to 50°C (14 to 122°F)
- Maximum Pressure: 145 psig
- Wetted Parts: 302 and 303 stainless steel, FKM, glass reinforced PPS, heat cured epoxy
- Connection: 1/8 FNPT
- Calibration: over 130 gases including pure and mixed gases
- Supply Voltage: 7 to 30 Vdc
- Humidity Range: 0 to 100% non-condensing
- Response Time: 10 ms, adjustable via RS232
- Includes: NIST certificate, operator's manual, 24 VDC power supply, 1.8m cable, 8-pin mini DIN connector
Buy the Omega Series FMA-1600A Gas Flow Meter: FMA1617A
Purchase the Omega Series FMA-1600A gas flow meter online today for highly accurate measurement of clean gases. With support for over 130 gas calibrations, including pure and mixed gases, this device provides dependable real-time data via RS232 communication. Its laminar flow technology eliminates the need for straight pipe runs, while the integrated sensors standardize measurements at set conditions. Ideal for industrial applications, it features a durable stainless steel wetted parts, adjustable response time, and includes calibration certification, power supply, and user manual for easy setup and operation.
Order your Omega Series FMA-1600A gas flow meter today and ensure precise, reliable gas flow measurement for your critical applications.
