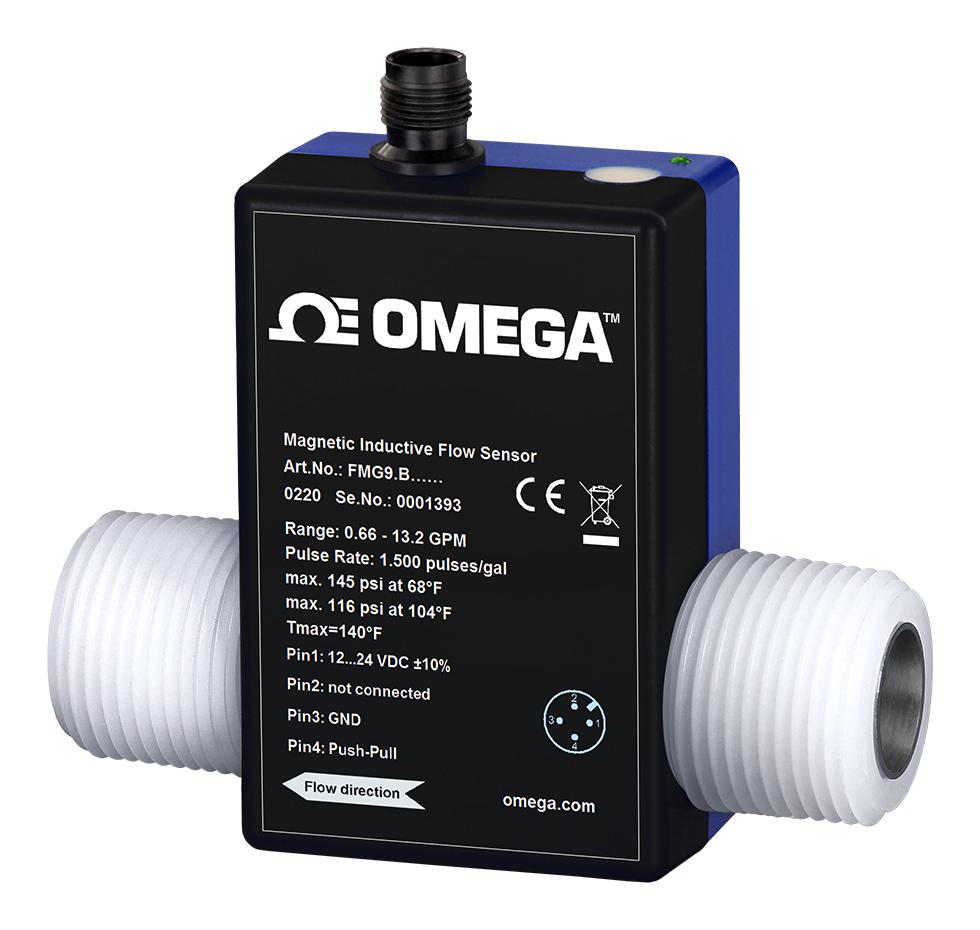

OMEGA FMG920BSSVONPT Magnetic Flow Sensor
The FMG920BSSVONPT is a magnetic inductive flow sensor designed for measuring electrically conductive liquids in industrial pipelines. It features a robust plastic housing with IP65 protection, stainless steel electrodes, and various process connection sizes including 1-inch NPT threads. The device operates based on electromagnetic induction, providing flow measurement without moving parts. It includes a 4-pin M12x1 electrical connection, and its compact, corrosion-resistant design makes it suitable for water and other conductive fluids in industrial process control systems. The sensor is easy to install, with options for horizontal or vertical pipe mounting, ensuring precise flow measurement in demanding environments.
OMEGA FMG920BSSVONPT Magnetic Flow Sensor Specifications:
- Type: FMG920BSSVONPT
- Measurement range: 0.66 to 13.2 gpm (3.0 to 60 l/m)
- Accuracy: +0.7% of reading
- Repeatability: 4%
- Flow rate max.: 79.2 gpm (357 l/m)
- Response time: < 100 ms
- Output signal: Frequency output, square wave signal, 15000 pulses/gal, resolution 0.25 ml/pulse
- Electrical connection: 4-pin plug M12x1
- Supply voltage: 12-24 V DC (+10%)
- Power consumption: Max 3.6 W
- Material: Housing - plastic, electrodes - stainless steel 1.4404 or Hastelloy C®*
- Process connection: 1-inch NPT male thread
- Protection class: IP65 (with connection cable)
- Temperature range: 41°F to 140°F (5°C to 60°C)
- Max. working pressure: 145 psi (68°F), higher on request
Buy the Omega FMG920BSSVONPT – Reliable Magnetic Inductive Flow Sensor for Industrial Applications
Purchase the Omega FMG920BSSVONPT magnetic inductive flow sensor online today. It offers accurate measurement of conductive liquids, IP65 protection, stainless steel electrodes, and easy installation in pipelines. Its robust construction ensures reliability in demanding environments, making it ideal for industrial water and fluid flow monitoring. With quick response time and maintenance-free operation, this sensor provides consistent, high-precision flow data, streamlining process control and metering in various manufacturing and processing industries. Buy now for dependable performance.
Get Omega FMG920BSSVONPT today—built for precision and long-lasting durability in industrial flow measurement.
