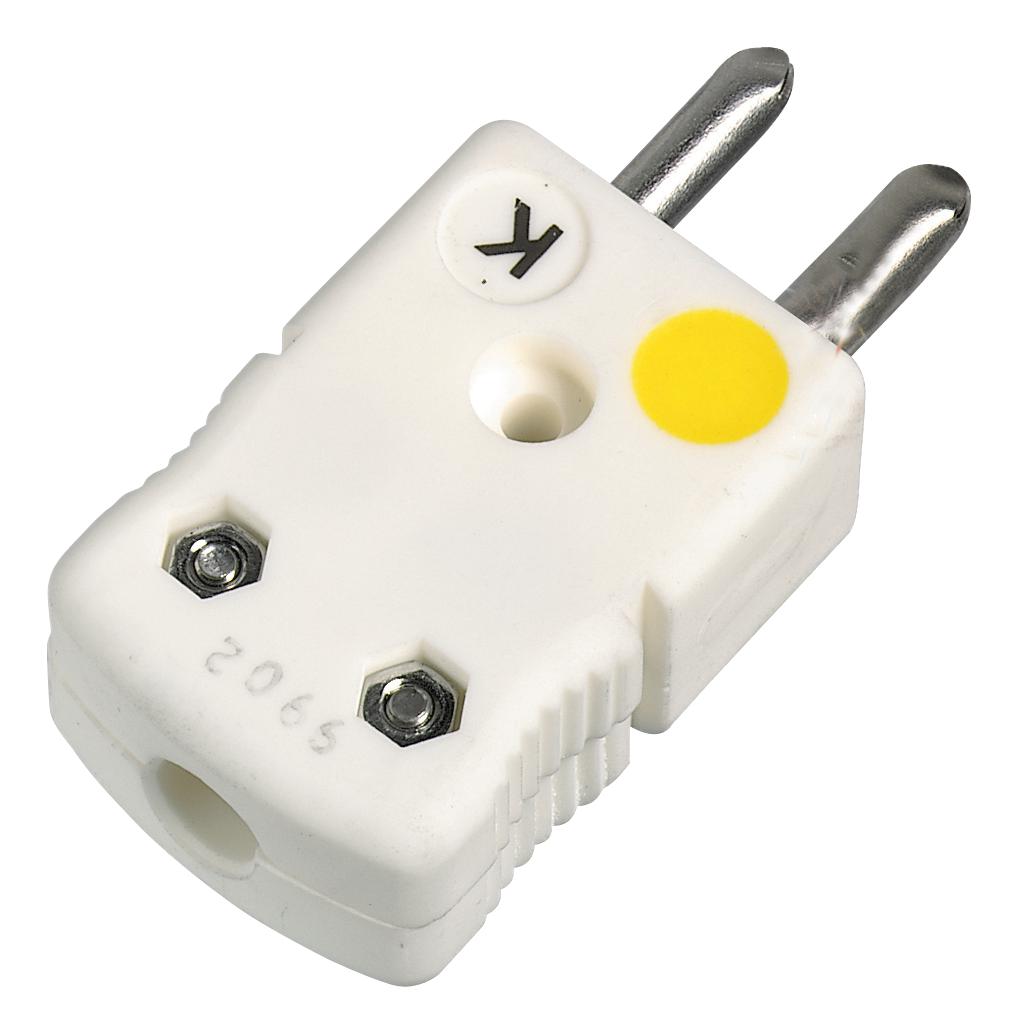

OMEGA NHXKM Ceramic Connector
Omega NHX ceramic connectors are high-purity alumina ceramic devices designed for high-temperature applications up to 650°C (1200°F). These connectors feature a one-piece body design, economical hollow pin construction, and are permanently color-coded to meet ANSI and Omega standards. The UHX models include a removable color dot for vacuum furnace applications, ensuring contamination-free operation. Suitable for thermocouple connections, they offer durable ceramic construction with combination Phillips and slot screw closures, making them ideal for long-term, reliable use in industrial environments requiring high temperature and cleanliness.
OMEGA NHXKM Ceramic Connector Specifications:
- Material: High Purity Alumina Ceramic
- Temperature Rating: -29 to 650°C (-20 to 1200°F)
- Body Design: One-Piece
- Construction: Economical hollow pin design, high-strength ceramic
- Color Coding: Permanent dot-coded, removable dot for vacuum use
- Screws: Combination Phillips/Slot screws
- Maximum Temperature: Up to 650°C with appropriate alloys such as CHROMEGA®-ALOMEGA®
- Gender: Male and female connectors, with identical body sizes
- Dimensions: Body length approximately 16.0 mm (0.63 inches), other dimensions vary by model
- Standards: Conforms to ANSI and Omega specifications
- Application: High vacuum furnaces, thermocouple connections, high temperature industrial environments
Buy the Buy Omega NHX Part Number NHXKM Online
Order Omega NHX ceramic connectors online for high-temperature industrial applications. Designed with a durable one-piece body, combo screws, and color coding, these connectors ensure reliable thermocouple connections up to 650°C. Ideal for vacuum furnaces and contamination-sensitive environments, the UHX models feature removable color dots for easy, clean installation. Made from high-purity alumina ceramic, they offer exceptional strength, corrosion resistance, and long-term performance, meeting ANSI and Omega standards. Ensure your processes operate smoothly—buy now for dependable, thermally resilient connections.
Buy Omega NHX Part Number NHXKM now and experience unmatched reliability and high-temperature performance for industrial thermocouples and vacuum furnaces.
Frequently Asked Questions
Where can I buy OMEGA NHXKM?
You can click on the BUY or RFQ button to purchase NHXKM from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part NHXKM?
You can download the NHXKM datasheet or visit the OMEGA website for support.
Who is the manufacturer of NHXKM?
OMEGA
