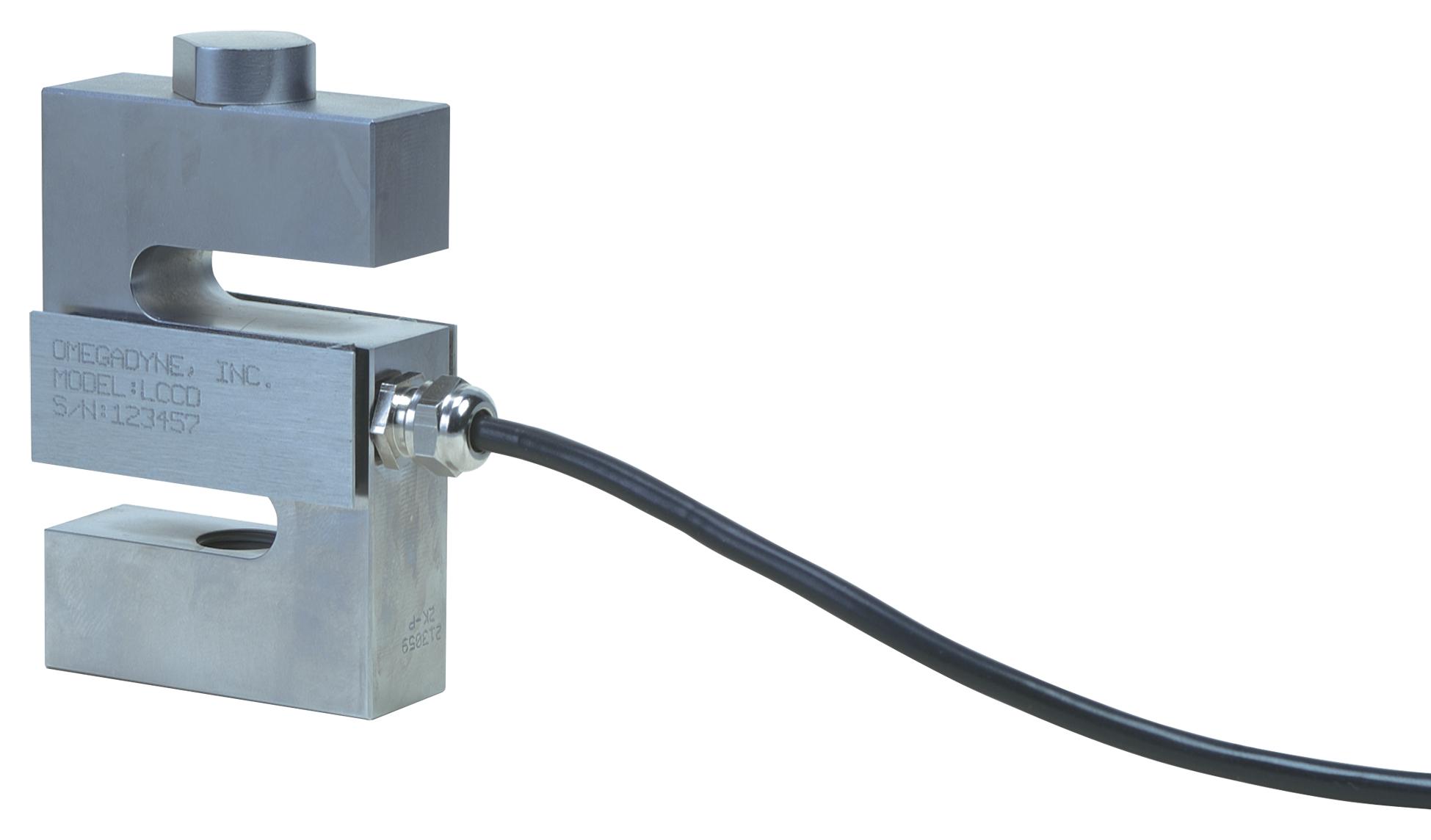

OMEGA LCCD5K Industrial Load Cell
The LCCD-5K is a stainless steel, environmentally protected S-beam load cell with a capacity of 5,000 pounds (2,269 kg). Suitable for industrial and severe environment applications, it features IP67 protection, a rugged construction from 17-4PH stainless steel, and includes a 6-meter shielded PVC cable with 22 AWG wire. Operating at 10 VDC excitation voltage, it offers 3 mV/V output ±0.25%. High accuracy of 0.03% FS creep, temperature range from -18°C to 66°C, and a safe load of 150% make it reliable in demanding conditions. It includes calibration certification and shunt data for precise measurements.
OMEGA LCCD5K Industrial Load Cell Specifications:
- Material: 17-4PH stainless steel
- Protection rating: IP67 (dust and waterproof)
- Capacity: 5,000 lbs (2,269 kg)
- Excitation Voltage: 10 VDC (up to 15 VDC max)
- Output: 3 mV/V +0.25%
- Creep (20 min): 0.03% FS
- Operating Temperature Range: -18°C to 66°C (0°F to 150°F)
- Zero Balance: 1%
- Maximum Safe Load: 150%
- Ultimate Load: 300%
- Bridge Resistance: 350 ohms
- Cable: 6 meters (20 ft), 4-conductor shielded PVC wire, 22 AWG
- Constructed from: 17-4PH stainless steel
- Includes calibration certificate, 59K shunt data
Buy the Omega LCCD-5K – Reliable Load Cells for Industrial Applications
Order the Omega LCCD-5K load cell online today to ensure accurate force measurement in harsh environments. Made from durable stainless steel, it features IP67 protection, a 5,000 lb capacity, and high precision output. The device includes a 6-meter shielded PVC cable, calibration certification, and is suitable for severe industrial applications. Its rugged construction guarantees reliability and durability, with safety rated at 150% of capacity. Perfect for robotics, manufacturing, or heavy-duty force measurement, purchase now for swift delivery and trusted quality control.
Get Omega LCCD-5K today—built for precision and long-lasting durability in demanding environments.
Frequently Asked Questions
Where can I buy OMEGA LCCD5K?
You can click on the BUY or RFQ button to purchase LCCD5K from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part LCCD5K?
You can download the LCCD5K datasheet or visit the OMEGA website for support.
Who is the manufacturer of LCCD5K?
OMEGA
