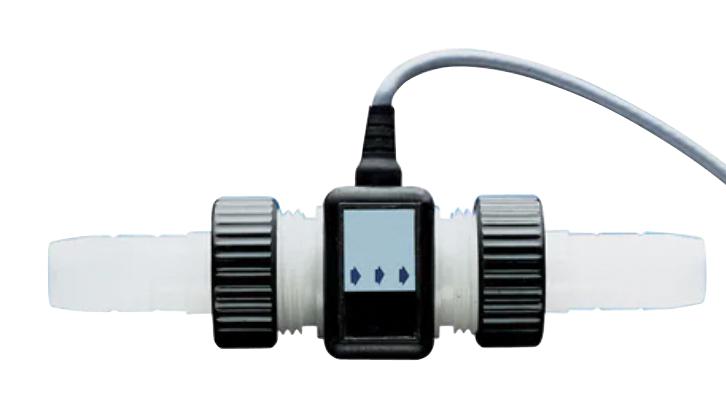

OMEGA FTB602BT Low Flow Sensor
The FTB600B Series Ultra-Low Flow Sensors are plastic, inline flowmeters designed for transparent fluids. Featuring infrared electro-optical technology, they deliver high accuracy (+1%), with six flow ranges from 0.1 to 120 LPM and a turn-down ratio of 30:1. Suitable for flexible mounting, they include threaded or Hose Barb connections, operate from 8-24 Vdc, and compensate for varying fluid opacity. With precise measurements and easy installation, these sensors are ideal for applications requiring reliable, accurate low flow detection in various fluid systems.
OMEGA FTB602BT Low Flow Sensor Specifications:
- Flow Ranges: 0.1 to 120 LPM across six models
- Accuracy: ±1% of reading
- Repeatability: ±0.1% of reading
- Maximum Pressure Drop: 6.5 psi at 30 psi (all units), 1.5 psi at 6.5 psi (FTB601)
- Output: Square wave pulse, compatible with automation
- Power Supply: 8-24 Vdc, 6-33 mA
- Ambient Temperature: -40°C to 85°C (-40°F to 185°F)
- Material: PVDF (Polyvinylidene fluoride) wetted parts
- Maximum Flow: varies per model, up to 120 LPM
- Cable Length: 0.9 meters
- Connections: Hose Barb or Threaded (NPT optionally with suffix '-T')
- Viscosity Range: 1 to 15 cSt
- Included: Strainer in models FTB602B-FTB606B, operator's manual
- Maximum Working Pressure: 150 psig at 79°C (175°F)
- Maximum Pressure Drop: 6.5 psi at 30 psi
- Temperature Range: -40°C to 85°C
Buy the Omega Series FTB600B Flow Sensor: FTB602BT
Purchase your Omega Series FTB600B plastic low flow sensor online today and enjoy precise flow measurements for transparent fluids. Designed for ease of installation, these sensors offer an accuracy of ±1%, suitable for a wide range of applications requiring low flow detection. With simple connections, robust construction, and included strainers, they deliver dependable performance. Order now to enhance your fluid control systems, benefit from fast delivery, and experience the reliability of advanced infrared technology tailored for your industrial or laboratory needs.
Order your Omega Series FTB600B flow sensor today and ensure reliable low flow measurement in your fluid systems with high accuracy and flexible mounting options.
