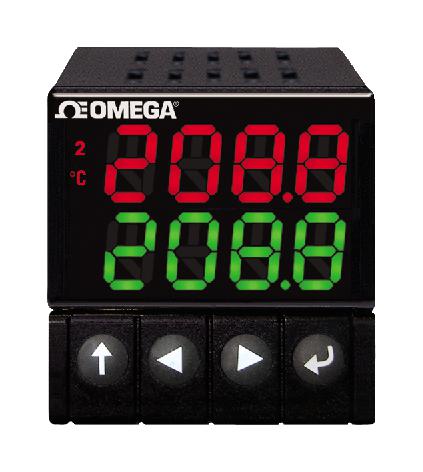

OMEGA CN16DPT225C24EIP Temperature Process Controller
The CN16DPT225C24EIP is a versatile temperature, process, and strain controller offering high accuracy inputs, full autotune PID with fuzzy logic, and multiple programmable outputs. It features a bright 4-digit, 9-segment LED display with wide viewing angles, firmware configurable settings, and universal inputs for thermocouples, RTD’s, thermistors, voltage, current, and strain. Equipped with USB communication, optional Ethernet, and serial interfaces, it supports cascade control, remote setpoints, alarms, and flexible control modes, making it ideal for demanding industrial and research applications, combining performance with easy setup and operation.
OMEGA CN16DPT225C24EIP Temperature Process Controller Specifications:
- Display: 4-digit, 9-segment LED with wide viewing angle
- Input Types: Thermocouple, RTD, thermistor, analog voltage, current, strain
- Thermocouple Types: J, K, T, E, R, S, B, C, N
- RTD: 100/500/1000 Q, 2-, 3-, 4-wire, curves 385, 392, 3916
- Thermistor: 2252 Q, 5K Q, 10K Q
- Voltage Input: -100 to 100 mV, -1 to 1 V, -10 to 10 Vde
- Current Input: 4 to 20 mA, scalable within 0 to 24 mA
- Accuracy for thermocouples: 0.05°C at 25°C; RTDs: 0.04°C/°C
- Sampling Rate: 20 samples/sec with 24-bit ADC
- Control Modes: ON/OFF, PID with auto-tune or fuzzy logic adaptive tuning
- Outputs: 2 to 6 control/alarm/retransmission outputs, including relays, DC pulse, analog voltage/current, isolated or non-isolated
- Communication: USB (standard), optional Ethernet, RS232/485, serial protocols including MODBUS
- Power: 90-240 Vac or low voltage 24 Vac / 12-36 Vdc options
- Protection & Certification: NEMA 4x/IP65 front bezel, UL, cUL, CE certifications, 5-year warranty
- Size: 45 mm (1.772") low profile, with optional dual display configurations
- Environmental: 0°C to 50°C, 90% RH, non-condensing
- Power Consumption: 3-4 W depending on model
- Additional features: Remote setpoint, cascade control, high-high/low-low alarms, external reset, password protection
Buy the Omega CN16DPT225C24EIP – Reliable Temperature Process Controller for Industrial Applications
Enhance your industrial or laboratory control systems with the Omega CN16DPT225C24EIP temperature and process controller. Featuring high accuracy inputs, flexible configurations, multiple programmable outputs, USB, and optional Ethernet, this controller simplifies complex process management. Its bright LED display, full autotune PID with fuzzy logic, and extensive alarm and communication capabilities ensure reliable, precise control. Easy to set up and operate, it’s ideal for demanding environments requiring robust, versatile, and intelligent process measurement and control solutions.
Buy Omega CN16DPT225C24EIP now and experience unmatched high-accuracy temperature control with versatile inputs and extensive communication options.
