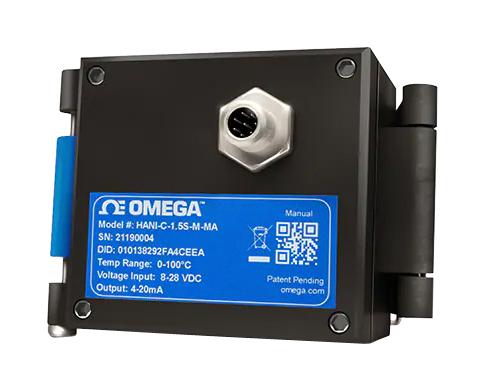

OMEGA HANIC20IMMA Clamp Temperature Sensor
The HANI™ Clamp Sensor is a high-accuracy, non-invasive temperature measurement device designed for easy attachment on metal pipes, providing fast, reliable readings without contact. Featuring hybrid sensing technology and Layer N connectivity, it ensures precise inside-pipe temperature monitoring for industrial and sanitary applications. It offers a 4 to 20mA output, measures 0 to 100°C, and achieves ±0.5°C to ±1.0°C accuracy with a quick response time of 5 to 10 seconds. IP65 rated for durability, this sensor simplifies installation on 2-inch pipes, making retrofit and quality control effortless without system downtime or contamination risk.
OMEGA HANIC20IMMA Clamp Temperature Sensor Specifications:
- Input Power: 8 Voc - 28 Voc (loop powered). Max Loop Resistance: (V supply - 8V)/0.024 A.
- Analog Output: 4 to 20 mA.
- Process Medium: Water, water-based fluids (others upon request).
- Pipe Diameters: 1.0”, 1.5”, 2.0” (others available).
- Process Temperature Range: 0 to 100°C, scalable.
- Accuracy: ±0.5°C for sanitary pipes, ±1.0°C for industrial pipes, calibration can improve accuracy.
- Response Time: t63 = 5 seconds, t90 = 10 seconds.
- Ambient Temperature: 0 to 40°C.
- Rating: IP65 when mated.
- Dimensions: 60.3 W x 64.31 L x 51.54 mm H (2.38 W x 2.53 L x 2.03” H).
- Materials: PA12, silicone rubber, nickel-plated brass, stainless steel.
- Certifications: CE, EMC 2014/30/EU, Low Voltage 2014/35/EU.
Buy the Omega Series Clamp Temperature Sensor: HANIC20IMMA
Order the Omega Clamp Temperature Sensor HANIC20IMMA online today and enjoy the convenience of quick installation, reliable non-contact measurement, and precise temperature monitoring for industrial and sanitary pipes. Featuring hybrid sensing technology and Layer N connectivity, it provides fast, accurate readings within a robust IP65 rated enclosure. Perfect for retrofitting or new systems, this sensor reduces contamination risk, eliminates downtime, and ensures optimal process control—making it the smart choice for your temperature monitoring needs.
Get Omega Clamp Temperature Sensor HANIC20IMMA today—built for precise, non-invasive pipe temperature monitoring and long-lasting durability.
