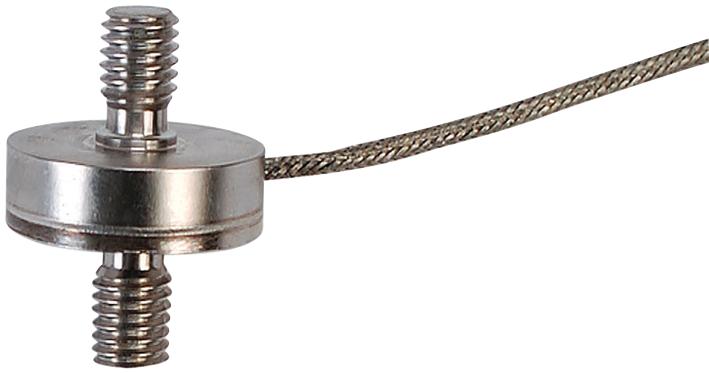

OMEGA LC201100 subminiature load cell
Omega LC201 load cells are highly precise, stainless steel subminiature devices designed for industrial automation and robotics. With a 19 mm diameter and dual mounting studs, they fit into small systems effortlessly. They offer 5-point calibration, high accuracy (+1% FSO), and long-term reliability, even in demanding environments. These tension/compression load cells operate over -54°C to 121°C, feature an IP54 rating, and include a shielded cable for ease of installation. Suitable for applications requiring compact, reliable force measurement with precise linearity and hysteresis control.
OMEGA LC201100 subminiature load cell Specifications:
- Diameter: 19 mm (0.75 inches)
- Material: Stainless steel
- Excitation: 10 Vdc, 15 Vdc max
- Output: 2 mV/V nominal
- Accuracy: +1.0% FSO linearity, hysteresis, repeatability
- Temperature Range: -54°C to 121°C
- Compensated Temp Range: 16°C to 71°C
- Protection Class: IP54
- Zero Balance: +2% FSO
- Overload Capacity: 150% of capacity
- Ultimate Overload: 300% of capacity
- Input Resistance: ≥360Ω
- Output Resistance: 350Ω ±10Ω
- Cable: 1.5 m (5 ft) shielded, 4-conductor
- Dimensions: 14.28 mm (UNF) and MG x 1.00 standards
- Calibration: 5-point NIST traceable
- Certification: NIST traceable calibration included
Buy the Omega LC201 – Reliable Load Cells for Industrial Applications
Order Omega LC201 subminiature load cells online today to ensure precise force measurement in tight spaces. These stainless steel devices deliver high accuracy, 5-point calibration, and long-term stability for industrial automation and robotic applications. Their compact design with dual mounting studs makes installation straightforward in small systems, while their protection class IP54 offers durability in tough environments. Perfect for professionals seeking reliable, high-performance load sensors with easy online purchasing options to elevate automation efficiency.
Buy Omega LC201 load cells now and experience unmatched reliability, precision, and ease of installation for demanding industrial automation and robotics.
Frequently Asked Questions
Where can I buy OMEGA LC201100?
You can click on the BUY or RFQ button to purchase LC201100 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part LC201100?
You can download the LC201100 datasheet or visit the OMEGA website for support.
Who is the manufacturer of LC201100?
OMEGA
