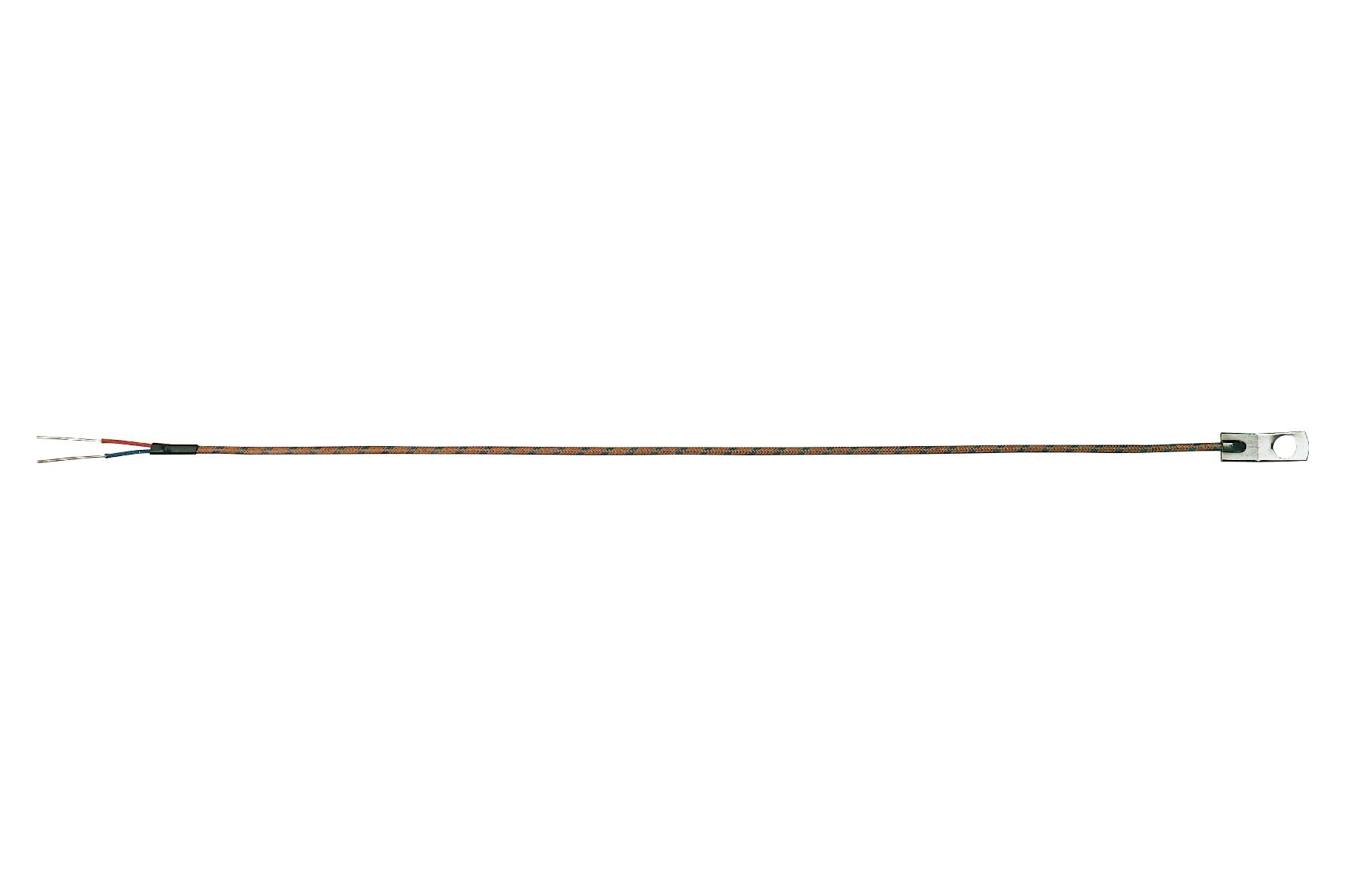

OMEGA WTK1460 Washer Thermocouple
The WT Series Washer Thermocouple Assemblies are durable, grounded junction temperature sensors designed for surface mounting on equipment. Manufactured with rugged PFA insulation rated up to 260°C (500°F) and glass insulation up to 480°C (900°F), these assemblies feature solid 20 AWG wire for reliable performance. Compatible with M3.5, M4, M4.5, and M6 screw sizes, they are ideal for precise temperature monitoring in industrial applications. Their compact dimensions and variety of lengths make installation easy and versatile across different surfaces and environments.
OMEGA WTK1460 Washer Thermocouple Specifications:
- Thermocouple Types: J, K, T, E
- Wire Material: 20 AWG solid wire
- Insulation: PFA rated to 260°C, glass rated to 480°C (900°F)
- Screw Sizes: M3.5, M4, M4.5, M6
- Dimensions: #6 W x 22L mm, #8 W x 25L mm, #10 W x 25L mm, M6: 6.60 mm W x 25L mm
- Lead Lengths: Standard 12, 24, 36, 60 inches, customizable over 60 inches
- Grounded Junction: Yes
- Mounting: Surface mounting, easy installation on different surfaces
- Temperature Rating: Up to 480°C (900°F)
- Insulation: Stripped leads standard, option for custom terminations
- Connector Variants: Male/Female, SRTC, SMPW, and others available with suffixes
- Certification: Suitable for industrial temperature sensing applications
Buy the Buy Omega Washer Thermocouple Part Number WTK1460 Online
Purchase the Omega Washer Thermocouple WTK1460 online today for reliable surface temperature measurement in harsh environments. Equipped with ground junction and high-temperature insulation, it ensures precise readings and easy installation. Available in multiple lengths and compatible with various connectors, this thermocouple is perfect for industrial applications where durability and accuracy are essential. Click now to order and enhance your temperature sensing solutions with proven quality and quick shipping.
Order your Omega Series WTK1460 grounded junction washer thermocouple today and ensure accurate temperature monitoring for your industrial projects.
Frequently Asked Questions
Where can I buy OMEGA WTK1460?
You can click on the BUY or RFQ button to purchase WTK1460 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part WTK1460?
You can download the WTK1460 datasheet or visit the OMEGA website for support.
Who is the manufacturer of WTK1460?
OMEGA
