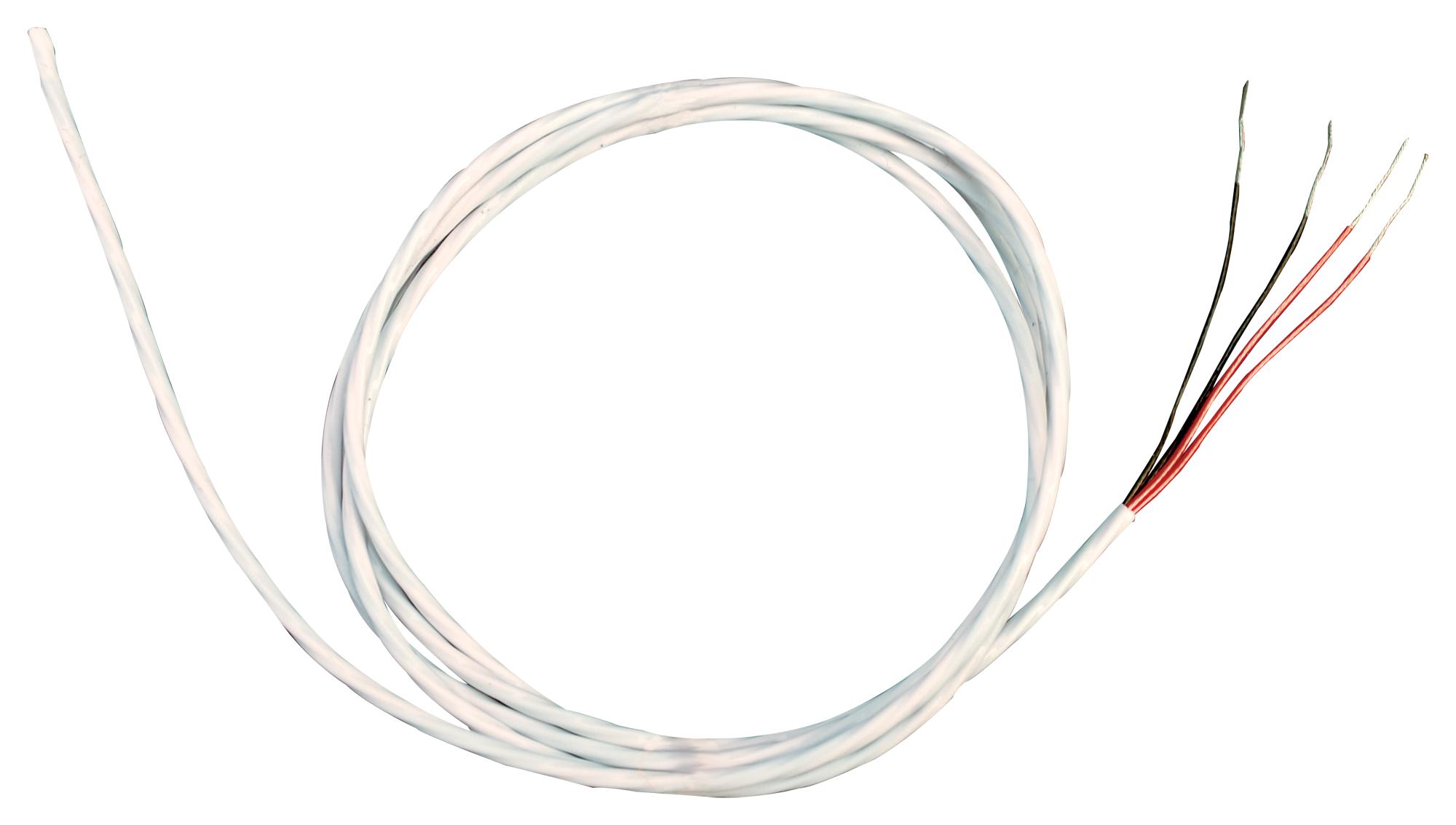

OMEGA HSRTD3100A80E Sanitary Temperature Sensor
The HSRTD Series flexible sealed PFA RTD temperature sensors are designed for use in wet and corrosive environments. They feature a platinum element with 4-wire configuration, providing high accuracy and stability. The sensors are sealed against moisture and corrosion with PFA insulated cable, ensuring reliability in demanding conditions. The standard resistance is 100 Q with Class A or B accuracy. Suitable for sterilization and easy cleaning, these sensors operate across a temperature range of -60°C to 260°C, making them ideal for industrial process and sanitary applications.
OMEGA HSRTD3100A80E Sanitary Temperature Sensor Specifications:
- Resistance: 100 Q, Class 'A' or 'B'
- Element Type: Platinum RTD
- Number of Wires: 4
- Temperature Range: -60°C to 260°C
- Cable Insulation: PFA insulated and jacketed
- Cable Lengths Available: 1m, 2m, 3m, 4.5m, 6m (option for longer lengths)
- Cable Diameter: approximately 0.2 mm (0.086 inches)
- Cable Material: NickeF-plated copper
- Sealed in first 1 inch of sensor
- Tip Diameter: approximately 0.2 mm
- Connector Options: Stripped leads, mini connectors, TA4F connector available
- Operational Environment: Wet, corrosive, sterilizable, easily cleaned
- Part Number Example: HSRTD-3-100A-80E
- Application: Industrial, sanitary processing, sterilization, precise temperature measurement
Buy the Sanitary Temperature Sensors Series HSRTD: HSRTD-3-100A80E
Discover the top-quality Sanitary Temperature Sensors Series HSRTD-3-100A80E, designed for accurate temperature measurement in sanitary and corrosive environments. These PFA-insulated, sealed RTD sensors feature a platinum element with 4-wire configuration, providing high accuracy and stability. Suitable for sterilization, cleaning, and demanding industrial applications, they operate from -60°C to 260°C. Available in various cable lengths and connector options, they are ideal for process control, sanitary systems, and food industry environments. Order online today for reliable performance and easy installation.
Order your Sanitary Temperature Sensors Series HSRTD-3-100A80E today and ensure precise, reliable temperature monitoring in challenging environments.
