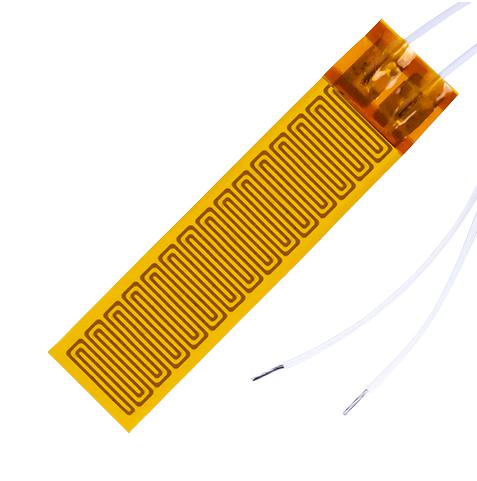

OMEGA PLM20310P Polyimide Flexible Heater
The PLM-Series polyimide flexible heaters are designed for precise temperature control on rounded surfaces, featuring chemical resistance and flexibility. Offered in various shapes, wattages, and voltages, these heaters include options with self-adhesive backing for easy installation. Operating temperatures range from -57°C to 232°C, with power densities up to 10 W/in². The low-profile design has a thickness of only 0.01 inches, and leads are 22 AWG PTFE insulated wire, ensuring reliable performance in industrial settings. Suitable for applications demanding flexible, chemical-resistant heating solutions.
OMEGA PLM20310P Polyimide Flexible Heater Specifications:
- Operating Temperature: -57°C to 232°C (-71°F to 450°F) without adhesive, -40°C to 149°C with adhesive
- Maximum Thickness: 0.01 inch, strain relief max 0.08 inch
- Watt Density: 2.5 W/in², 5 W/in², 10 W/in²
- Leads: 22 AWG PTFE insulated wire, 12 inches +0.4 inch length
- Dielectric Strength: 1250 VAC
- Minimum Bending Radius: 0.032 inch
- Maximum Operating Voltage: 28V, 115V, or 230V
- Model Width: 0.5 inch to 10 inches
- Length: 1 inch to 12 inches
- Adhesive Option: Self-adhesive or non-adhesive
- Application: Flexible, chemical-resistant heating on curved surfaces in industrial processes
Buy the Omega PLM-Series – Reliable Flexible Polyimide Heaters for Industrial Applications
Purchase Omega PLM-Series flexible polyimide heaters online now to benefit from superior chemical resistance, adaptable sizes, and reliable performance in industrial settings. These highly flexible heaters cater to applications requiring uniform heat on curved surfaces, with options including self-adhesive backing for quick installation. Operating safely within -57°C to 232°C, they ensure efficient heating for manufacturing, testing, and process control. Buy online today and experience durable, flexible heating solutions designed for demanding industrial environments, backed by trusted quality and performance.
Get Omega PLM-Series today—built for precision and long-lasting durability on curved surfaces and in demanding industrial environments.
