OMEGA HTMG1CU314SC50 High-Temperature Insulated Wire

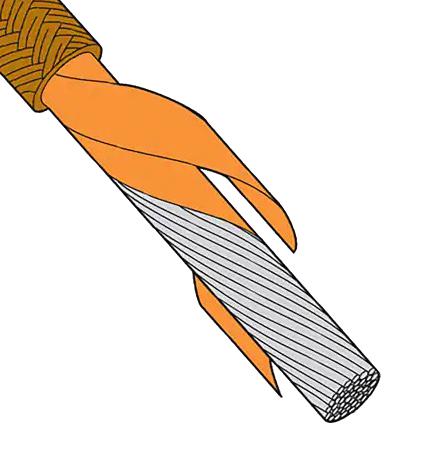

The HTMG series Mica-Glass Insulated Hook-Up Wire is designed for high-temperature industrial applications up to 450°C (842°F). Featuring stranded nickel-coated copper conductors, these wires are CSA certified, UL listed, and suitable for use in food service equipment, heaters, kilns, and heat-treating furnaces. The wires are insulated with mica and treated glass braid, providing excellent thermal stability and electrical performance. Available in various gauges and spool lengths, they ensure reliable connection in demanding environments with superior heat resistance and flexibility.
OMEGA HTMG1CU314SC50 High-Temperature Insulated Wire Specifications:
- Conductor Material: Stranded Nickel-Coated Copper
- Conductor Temperature Rating: 450°C (842°F)
- Insulation: Mica Tape with Treated Glass Braid
- Certifications: CSA Certified, UL Listed, NRTL
- Gauges Available: 8, 10, 12, 14, 16, 18, 20, 22 AWG
- Voltage Rating: 300V, 600V
- Dimensions: Gage-specific diameter from 2.0 mm to 6.1 mm (0.08 to 0.26 inch)
- Weight: Ranges from 2.5 kg/300 m to 34.2 kg/300 m depending on gauge
Buy the Omega HTMG Series Insulated Heating Wire – Reliable High-Temperature Conductors for Industrial Applications
Order Omega HTMG series high-temperature insulation wire online today for your industrial heating needs. With CSA certification and UL listing, these wires ensure safety and durability up to 450°C. Available in various gauges and spool lengths, they are ideal for heat-treating furnaces, heaters, and food service equipment. Experience quick delivery and trusted quality that guarantees performance in extreme environments. Purchase now and ensure your projects have the reliable wiring solution they require for demanding industrial processes.
Buy Omega HTMG series high-temperature hook-up wire now and ensure reliable performance in demanding industrial heating and heat-treating environments.
